Name: AP2501FGE-7
Brand: Diodes Incorporated
SKU: AP2501FGE-7
Price: 0.18 USD
Availability: InStock

REF: AP2501FGE-7 Diodes Incorporated

AP2501FGE-7

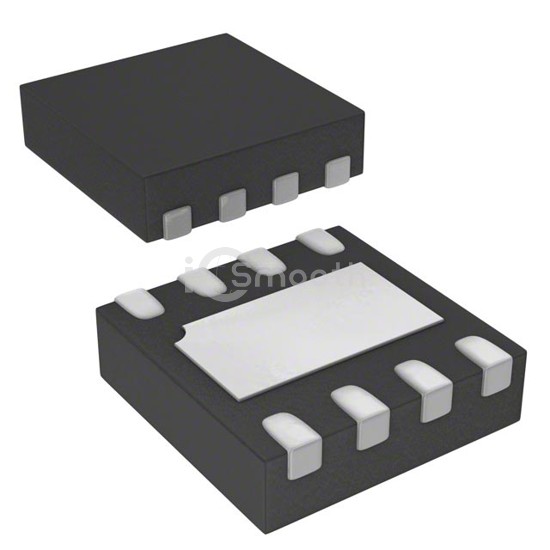

IC PWR SWITCH P-CHAN 1:1 8UDFN

AP2501FGE-7 is a PMIC - Power Distribution Switches, Load Drivers manufactured by Diodes Incorporated. IC PWR SWITCH P-CHAN 1:1 8UDFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) Not Required, package / case 8-UDFN Exposed Pad.

Datasheet Request a Quote

In Stock: 3,492

Tiered Pricing USD

3,000+ $0.1840 —

6,000+ $0.1701 -8%

9,000+ $0.1630 -11%

15,000+ $0.1552 -16%

21,000+ $0.1506 -18%

30,000+ $0.1461 -21% BEST

Specifications

18 parameters

Product Status	Obsolete
Switch Type	USB Switch
Number of Outputs	1
Ratio - Input:Output	1:1
Output Configuration	High Side
Output Type	P-Channel
Interface	On/Off
Voltage - Load	2.7V ~ 5.5V
Voltage - Supply (Vcc/Vdd)	Not Required

Current - Output (Max)	2.5A
Rds On (Typ)	70mOhm
Input Type	Non-Inverting
Features	Load Discharge, Status Flag
Fault Protection	Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Supplier Device Package	U-DFN3030-8 (Type E)
Package / Case	8-UDFN Exposed Pad
