Name: AP2401SN-7
Brand: Diodes Incorporated
SKU: AP2401SN-7
Price: 0.32 USD
Availability: InStock

REF: AP2401SN-7 Diodes Incorporated

AP2401SN-7

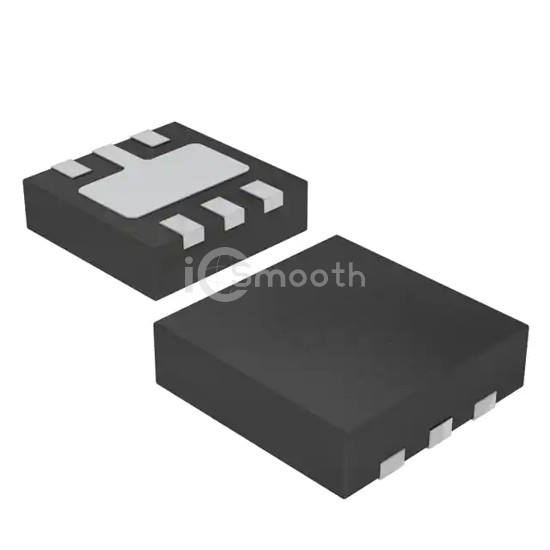

IC PWR SWITCH P-CH 1:1 6DFN2020

AP2401SN-7 is a PMIC - Power Distribution Switches, Load Drivers manufactured by Diodes Incorporated. IC PWR SWITCH P-CH 1:1 6DFN2020. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) Not Required, package / case 6-UDFN Exposed Pad.

Datasheet Request a Quote

In Stock: 925

Tiered Pricing USD

1+ $0.3200 —

10+ $0.2220 -31%

25+ $0.1972 -38%

100+ $0.1698 -47%

250+ $0.1567 -51%

500+ $0.1488 -53%

1,000+ $0.1423 -56% BEST

Specifications

18 parameters

Product Status	Active
Switch Type	USB Switch
Number of Outputs	1
Ratio - Input:Output	1:1
Output Configuration	High Side
Output Type	P-Channel
Interface	On/Off
Voltage - Load	2.7V ~ 5.5V
Voltage - Supply (Vcc/Vdd)	Not Required

Current - Output (Max)	2A
Rds On (Typ)	70mOhm
Input Type	Non-Inverting
Features	Load Discharge, Status Flag
Fault Protection	Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Supplier Device Package	U-DFN2020-6
Package / Case	6-UDFN Exposed Pad
