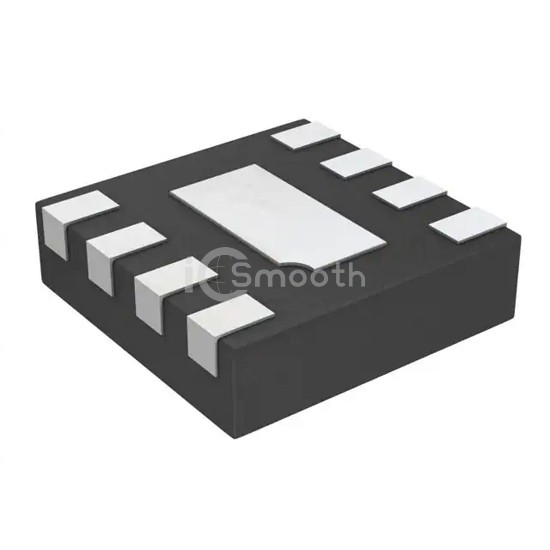

Name: AP22850SH8-7
Brand: Diodes Incorporated
SKU: AP22850SH8-7
Price: 0.81 USD
Availability: InStock

REF: AP22850SH8-7 Diodes Incorporated

AP22850SH8-7

Diodes Incorporated

IC PWR SWITCH P-CHAN 1:1 8WDFN

AP22850SH8-7 is a PMIC - Power Distribution Switches, Load Drivers manufactured by Diodes Incorporated. IC PWR SWITCH P-CHAN 1:1 8WDFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) 2.5V ~ 5.5V, package / case 8-VFDFN Exposed Pad.

Datasheet Request a Quote

In Stock: 4,027

Tiered Pricing USD

1+ $0.8100 —

10+ $0.4850 -40%

25+ $0.4004 -51%

100+ $0.3049 -62%

250+ $0.2579 -68%

500+ $0.2290 -72%

1,000+ $0.2047 -75% BEST

Specifications

18 parameters

Product Status	Active
Switch Type	General Purpose
Number of Outputs	1
Ratio - Input:Output	1:1
Output Configuration	High Side
Output Type	P-Channel
Interface	On/Off
Voltage - Load	4.5V ~ 11V
Voltage - Supply (Vcc/Vdd)	2.5V ~ 5.5V

Current - Output (Max)	8A
Rds On (Typ)	21mOhm
Input Type	-
Features	Load Discharge, Power Good, Slew Rate Controlled
Fault Protection	-
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Supplier Device Package	8-WDFN (2x2)
Package / Case	8-VFDFN Exposed Pad
