Name: AP22815AWT-7
Brand: Diodes Incorporated
SKU: AP22815AWT-7
Price: 0.74 USD
Availability: InStock

REF: AP22815AWT-7 Diodes Incorporated

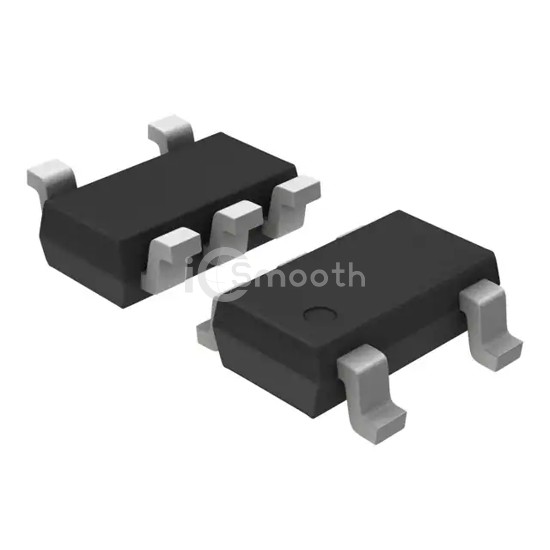

AP22815AWT-7

Diodes Incorporated

IC PWR SWTCH N/P-CHAN 1:1 TSOT25

AP22815AWT-7 is a PMIC - Power Distribution Switches, Load Drivers manufactured by Diodes Incorporated. IC PWR SWTCH N/P-CHAN 1:1 TSOT25. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) 3V ~ 5.5V, package / case SOT-23-5 Thin, TSOT-23-5.

Datasheet Request a Quote

In Stock: 70,589

Tiered Pricing USD

1+ $0.7400 —

10+ $0.5280 -29%

25+ $0.4744 -36%

100+ $0.4154 -44%

250+ $0.3874 -48%

500+ $0.3704 -50%

1,000+ $0.3565 -52% BEST

Specifications

18 parameters

Product Status	Active
Switch Type	USB Switch
Number of Outputs	1
Ratio - Input:Output	1:1
Output Configuration	High Side
Output Type	N/P-Channel
Interface	On/Off
Voltage - Load	3V ~ 5.5V
Voltage - Supply (Vcc/Vdd)	3V ~ 5.5V

Current - Output (Max)	3A
Rds On (Typ)	40mOhm
Input Type	Non-Inverting
Features	Load Discharge, Status Flag
Fault Protection	Over Current, Over Temperature, Over Voltage, Short Circuit
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Supplier Device Package	TSOT-25
Package / Case	SOT-23-5 Thin, TSOT-23-5
