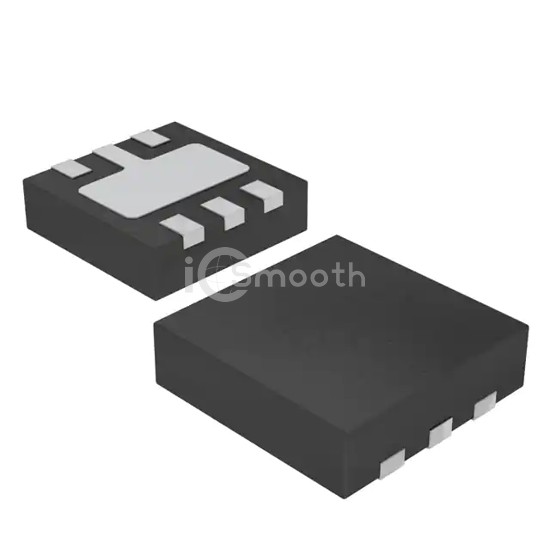

Name: AP22804ASN-7
Brand: Diodes Incorporated
SKU: AP22804ASN-7
Price: 0.37 USD
Availability: InStock

REF: AP22804ASN-7 Diodes Incorporated

AP22804ASN-7

Diodes Incorporated

IC PWR SWITCH P-CHAN 1:1 6UDFN

AP22804ASN-7 is a PMIC - Power Distribution Switches, Load Drivers manufactured by Diodes Incorporated. IC PWR SWITCH P-CHAN 1:1 6UDFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) Not Required, package / case 6-UDFN Exposed Pad.

Datasheet Request a Quote

In Stock: 3,745

Tiered Pricing USD

1+ $0.3700 —

10+ $0.2560 -31%

25+ $0.2276 -38%

100+ $0.1965 -47%

250+ $0.1817 -51%

500+ $0.1727 -53%

1,000+ $0.1654 -55% BEST

Specifications

18 parameters

Product Status	Active
Switch Type	USB Switch
Number of Outputs	1
Ratio - Input:Output	1:1
Output Configuration	High Side
Output Type	P-Channel
Interface	On/Off
Voltage - Load	2.7V ~ 5.5V
Voltage - Supply (Vcc/Vdd)	Not Required

Current - Output (Max)	2.5A
Rds On (Typ)	50mOhm
Input Type	Non-Inverting
Features	Load Discharge, Status Flag
Fault Protection	Current Limiting (Fixed), Over Temperature, UVLO
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Supplier Device Package	U-DFN2020-6
Package / Case	6-UDFN Exposed Pad
