Name: AP22800HB-7
Brand: Diodes Incorporated
SKU: AP22800HB-7
Price: 0.36 USD
Availability: InStock

REF: AP22800HB-7 Diodes Incorporated

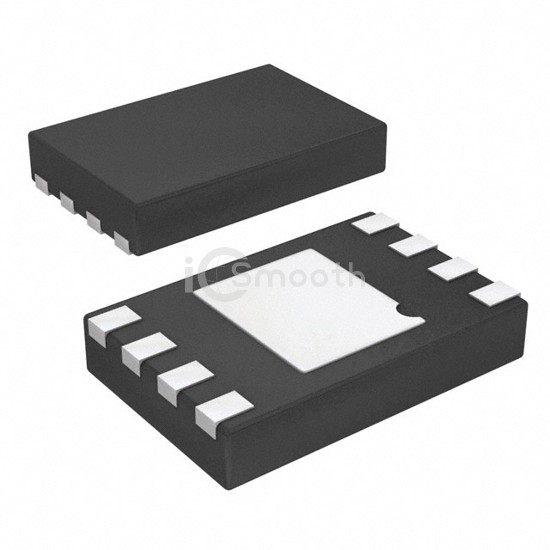

AP22800HB-7

IC PWR SWITCH N-CHAN 1:1 8UDFN

AP22800HB-7 is a PMIC - Power Distribution Switches, Load Drivers manufactured by Diodes Incorporated. IC PWR SWITCH N-CHAN 1:1 8UDFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) Not Required, package / case 8-UFDFN Exposed Pad.

Datasheet Request a Quote

In Stock: 210,735

Tiered Pricing USD

1+ $0.3600 —

10+ $0.2500 -31%

25+ $0.2228 -38%

100+ $0.1923 -47%

250+ $0.1777 -51%

500+ $0.1689 -53%

1,000+ $0.1617 -55% BEST

Specifications

18 parameters

Product Status	Active
Switch Type	General Purpose
Number of Outputs	1
Ratio - Input:Output	1:1
Output Configuration	High Side
Output Type	N-Channel
Interface	On/Off
Voltage - Load	1.5V ~ 5.5V
Voltage - Supply (Vcc/Vdd)	Not Required

Current - Output (Max)	4A
Rds On (Typ)	19mOhm
Input Type	Non-Inverting
Features	Power Good, Slew Rate Controlled
Fault Protection	UVLO
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Supplier Device Package	U-DFN2116-8
Package / Case	8-UFDFN Exposed Pad
