Name: AP2280-2FMG-7
Brand: Diodes Incorporated
SKU: AP2280-2FMG-7
Price: 0.58 USD
Availability: InStock

REF: AP2280-2FMG-7 Diodes Incorporated

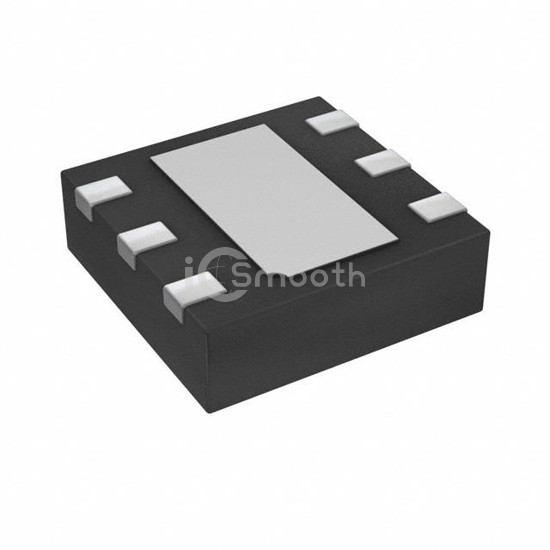

AP2280-2FMG-7

Diodes Incorporated

IC PWR SWITCH P-CHANNEL 1:1 6DFN

AP2280-2FMG-7 is a PMIC - Power Distribution Switches, Load Drivers manufactured by Diodes Incorporated. IC PWR SWITCH P-CHANNEL 1:1 6DFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) Not Required, package / case 6-UFDFN Exposed Pad.

Datasheet Request a Quote

In Stock: 69,044

Tiered Pricing USD

1+ $0.5800 —

10+ $0.4100 -29%

25+ $0.3676 -37%

100+ $0.3202 -45%

250+ $0.2977 -49%

500+ $0.2842 -51%

1,000+ $0.2730 -53% BEST

Specifications

18 parameters

Product Status	Active
Switch Type	General Purpose
Number of Outputs	1
Ratio - Input:Output	1:1
Output Configuration	High Side
Output Type	P-Channel
Interface	On/Off
Voltage - Load	1.5V ~ 6V
Voltage - Supply (Vcc/Vdd)	Not Required

Current - Output (Max)	2A
Rds On (Typ)	80mOhm
Input Type	Non-Inverting
Features	Load Discharge, Slew Rate Controlled
Fault Protection	-
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Supplier Device Package	U-DFN2018-6
Package / Case	6-UFDFN Exposed Pad
