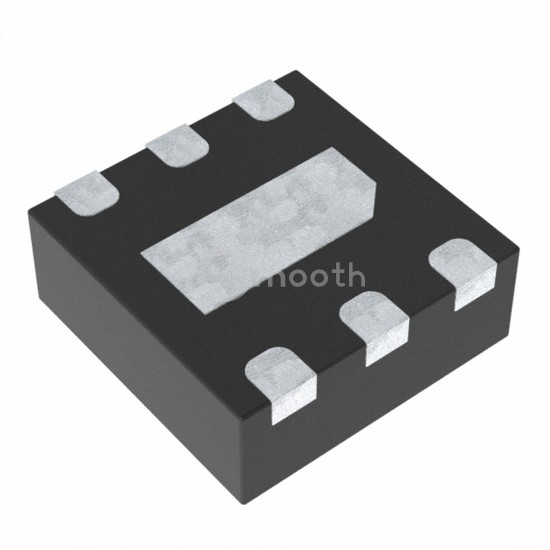

Name: AP22653FDZ-7
Brand: Diodes Incorporated
SKU: AP22653FDZ-7
Price: 0.36 USD
Availability: InStock

REF: AP22653FDZ-7 Diodes Incorporated

AP22653FDZ-7

Diodes Incorporated

LOAD SWITCH,W-DFN2020-6,T&R,3K

AP22653FDZ-7 is a PMIC - Power Distribution Switches, Load Drivers manufactured by Diodes Incorporated. LOAD SWITCH,W-DFN2020-6,T&R,3K. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) Not Required, package / case 6-WDFN Exposed Pad.

Datasheet Request a Quote

In Stock: 675,940

Tiered Pricing USD

1+ $0.3600 —

10+ $0.2470 -31%

25+ $0.2196 -39%

100+ $0.1895 -47%

250+ $0.1751 -51%

500+ $0.1665 -54%

1,000+ $0.1593 -56% BEST

Specifications

18 parameters

Product Status	Active
Switch Type	General Purpose
Number of Outputs	1
Ratio - Input:Output	1:1
Output Configuration	High Side
Output Type	P-Channel
Interface	On/Off
Voltage - Load	3.5V ~ 5.5V
Voltage - Supply (Vcc/Vdd)	Not Required

Current - Output (Max)	2.1A
Rds On (Typ)	65mOhm
Input Type	Non-Inverting
Features	Load Discharge, Slew Rate Controlled, Status Flag
Fault Protection	Current Limiting (Adjustable), Over Temperature, Over Voltage, Reverse Current, Short Circuit, UVLO
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Supplier Device Package	W-DFN2020-6 (Type A1)
Package / Case	6-WDFN Exposed Pad
