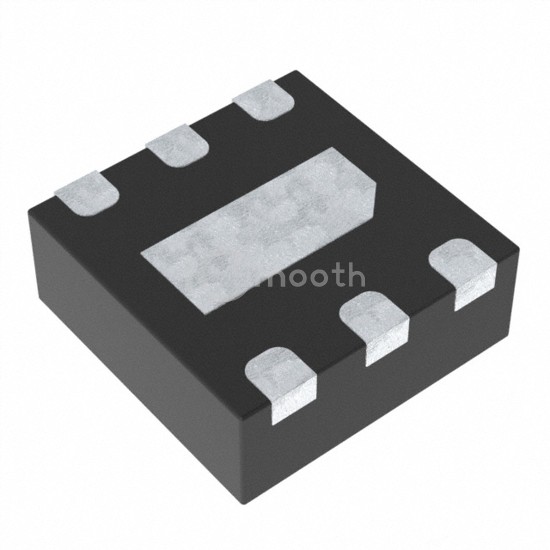

Name: AP22652FDZ-7
Brand: Diodes Incorporated
SKU: AP22652FDZ-7
Price: 0.36 USD
Availability: InStock

REF: AP22652FDZ-7 Diodes Incorporated

AP22652FDZ-7

Diodes Incorporated

LOAD SWITCH,W-DFN2020-6,T&R,3K

AP22652FDZ-7 is a PMIC - Power Distribution Switches, Load Drivers manufactured by Diodes Incorporated. LOAD SWITCH,W-DFN2020-6,T&R,3K. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) Not Required, package / case 6-WDFN Exposed Pad.

Datasheet Request a Quote

In Stock: 171,881

Tiered Pricing USD

1+ $0.3600 —

10+ $0.2470 -31%

25+ $0.2196 -39%

100+ $0.1895 -47%

250+ $0.1751 -51%

500+ $0.1665 -54%

1,000+ $0.1593 -56% BEST

Specifications

18 parameters

Product Status	Active
Switch Type	General Purpose
Number of Outputs	1
Ratio - Input:Output	1:1
Output Configuration	High Side
Output Type	P-Channel
Interface	On/Off
Voltage - Load	3V ~ 5.5V
Voltage - Supply (Vcc/Vdd)	Not Required

Current - Output (Max)	2.1A
Rds On (Typ)	65mOhm
Input Type	Inverting
Features	Load Discharge, Slew Rate Controlled, Status Flag
Fault Protection	Current Limiting (Adjustable), Over Temperature, Over Voltage, Reverse Current, Short Circuit, UVLO
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Supplier Device Package	W-DFN2020-6 (Type A1)
Package / Case	6-WDFN Exposed Pad
