Name: AP2172AFGEG-7
Brand: Diodes Incorporated
SKU: AP2172AFGEG-7
Price: 0.90 USD
Availability: InStock

REF: AP2172AFGEG-7 Diodes Incorporated

AP2172AFGEG-7

Diodes Incorporated

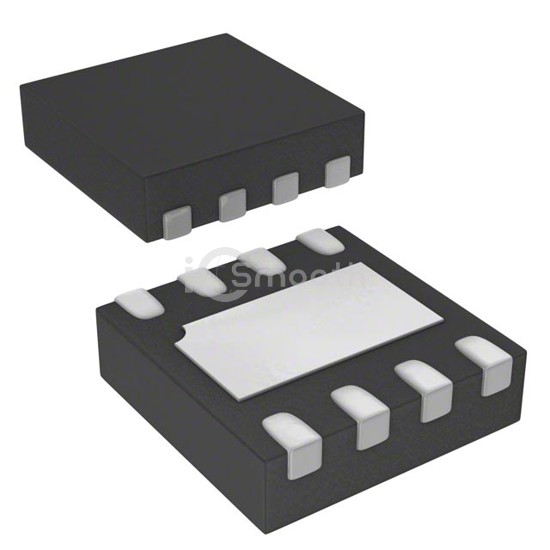

IC PWR SWITCH P-CHAN 1:2 8UDFN

AP2172AFGEG-7 is a PMIC - Power Distribution Switches, Load Drivers manufactured by Diodes Incorporated. IC PWR SWITCH P-CHAN 1:2 8UDFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) Not Required, package / case 8-UDFN Exposed Pad.

Datasheet Request a Quote

In Stock: 4,468

Tiered Pricing USD

1+ $0.9000 —

10+ $0.6470 -28%

25+ $0.5836 -35%

100+ $0.5130 -43%

250+ $0.4794 -47%

500+ $0.4592 -49%

1,000+ $0.4425 -51% BEST

Specifications

18 parameters

Product Status	Active
Switch Type	USB Switch
Number of Outputs	2
Ratio - Input:Output	1:2
Output Configuration	High Side
Output Type	P-Channel
Interface	On/Off
Voltage - Load	2.7V ~ 5.5V
Voltage - Supply (Vcc/Vdd)	Not Required

Current - Output (Max)	1A
Rds On (Typ)	85mOhm
Input Type	Non-Inverting
Features	Load Discharge, Status Flag
Fault Protection	Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Supplier Device Package	U-DFN3030-8 (Type E)
Package / Case	8-UDFN Exposed Pad
