Name: AP2171AFM-7
Brand: Diodes Incorporated
SKU: AP2171AFM-7
Price: 0.54 USD
Availability: InStock

REF: AP2171AFM-7 Diodes Incorporated

AP2171AFM-7

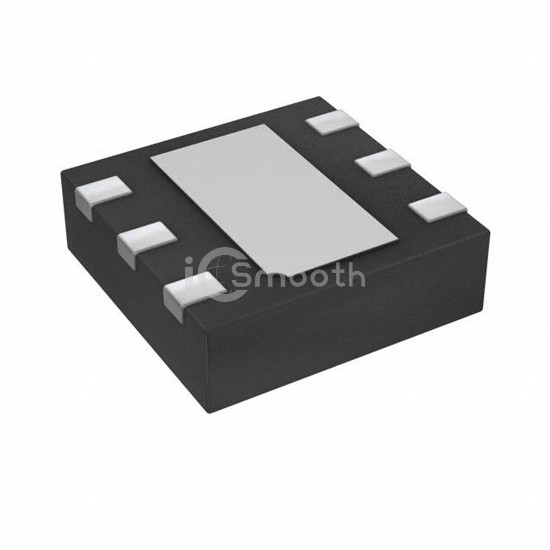

IC PWR SWITCH P-CHAN 1:1 6UDFN

AP2171AFM-7 is a PMIC - Power Distribution Switches, Load Drivers manufactured by Diodes Incorporated. IC PWR SWITCH P-CHAN 1:1 6UDFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) Not Required, package / case 6-UFDFN Exposed Pad.

Datasheet Request a Quote

In Stock: 8,550

Tiered Pricing USD

1+ $0.5400 —

10+ $0.3830 -29%

25+ $0.3428 -37%

100+ $0.2983 -45%

250+ $0.2771 -49%

500+ $0.2644 -51%

1,000+ $0.2539 -53% BEST

Specifications

18 parameters

Product Status	Active
Switch Type	USB Switch
Number of Outputs	1
Ratio - Input:Output	1:1
Output Configuration	High Side
Output Type	P-Channel
Interface	On/Off
Voltage - Load	2.7V ~ 5.5V
Voltage - Supply (Vcc/Vdd)	Not Required

Current - Output (Max)	1A
Rds On (Typ)	90mOhm
Input Type	Inverting
Features	Status Flag
Fault Protection	Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Supplier Device Package	U-DFN2018-6
Package / Case	6-UFDFN Exposed Pad
