AH9247DNTR-G1

In Stock: 8,156

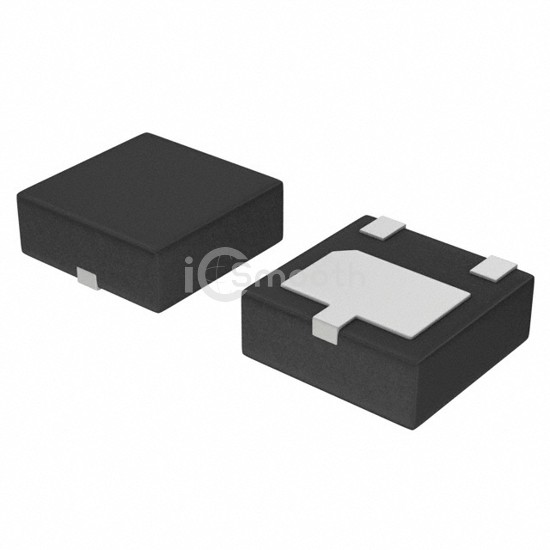

AH9247DNTR-G1 - Diodes Incorporated - Magnetic Sensors - Switches (Solid State)
REF: AH9247DNTR-G1 Diodes Incorporated
AH9247DNTR-G1

Diodes Incorporated

MAGNETIC SWITCH OMNIPOLAR 3DFN

AH9247DNTR-G1 is a Magnetic Sensors - Switches (Solid State) manufactured by Diodes Incorporated. MAGNETIC SWITCH OMNIPOLAR 3DFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply 2.5V ~ 5.5V, package / case 3-WDFN Exposed Pad.

Request a Quote

In Stock: 8,156

Specifications

15 parameters
Product StatusObsolete
FunctionOmnipolar Switch
TechnologyHall Effect
PolarizationNorth Pole, South Pole
Sensing Range±4mT Trip, ±3.2mT Release
Test Condition25°C
Voltage - Supply2.5V ~ 5.5V
Current - Supply (Max)15µA
Current - Output (Max)2mA
Output TypeDigital
Features-
Operating Temperature-40°C ~ 85°C (TA)
Mounting TypeSurface Mount
Supplier Device Package3-DFN (2x2)
Package / Case3-WDFN Exposed Pad
