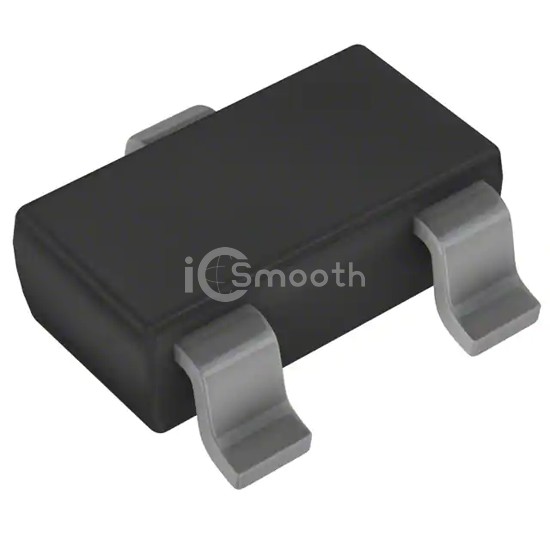

AH3765Q-W-7

In Stock: 4,569
AH3765Q-W-7 - Diodes Incorporated - Magnetic Sensors - Switches (Solid State)
REF: AH3765Q-W-7 Diodes Incorporated
AH3765Q-W-7

Diodes Incorporated

MAGNETIC SWITCH LATCH SC59

AH3765Q-W-7 is a Magnetic Sensors - Switches (Solid State) manufactured by Diodes Incorporated. MAGNETIC SWITCH LATCH SC59. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TA), voltage - supply 3V ~ 28V, package / case TO-236-3, SC-59, SOT-23-3.

Datasheet Request a Quote

In Stock: 4,569

Specifications

15 parameters
Product StatusActive
FunctionLatch
TechnologyHall Effect
PolarizationSouth Pole
Sensing Range9mT Trip, -9mT Release
Test Condition-40°C ~ 150°C
Voltage - Supply3V ~ 28V
Current - Supply (Max)4mA
Current - Output (Max)60mA
Output TypeOpen Drain
FeaturesTemperature Compensated
Operating Temperature-40°C ~ 150°C (TA)
Mounting TypeSurface Mount
Supplier Device PackageSC-59
Package / CaseTO-236-3, SC-59, SOT-23-3
