AH372-W-7

In Stock: 8,608

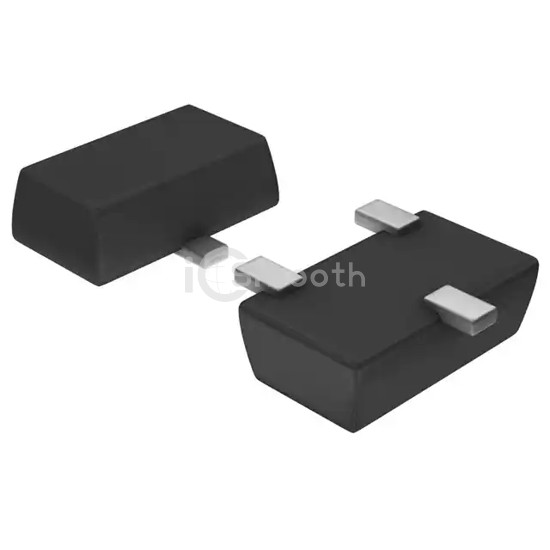

AH372-W-7 - Diodes Incorporated - Magnetic Sensors - Switches (Solid State)
REF: AH372-W-7 Diodes Incorporated
AH372-W-7

Diodes Incorporated

MAGNETIC SWITCH LATCH SC59-6

AH372-W-7 is a Magnetic Sensors - Switches (Solid State) manufactured by Diodes Incorporated. MAGNETIC SWITCH LATCH SC59-6. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), voltage - supply 2.2V ~ 20V, package / case SC-59-6.

Datasheet Request a Quote

In Stock: 8,608

Specifications

15 parameters
Product StatusActive
FunctionLatch
TechnologyHall Effect
PolarizationNorth Pole, South Pole
Sensing Range5mT Trip, -5mT Release
Test Condition25°C
Voltage - Supply2.2V ~ 20V
Current - Supply (Max)4mA
Current - Output (Max)25mA
Output TypeAnalog Voltage
Features-
Operating Temperature-40°C ~ 125°C (TA)
Mounting TypeSurface Mount
Supplier Device Package-
Package / CaseSC-59-6
