AH276UZ4-CG1

In Stock: 6,470

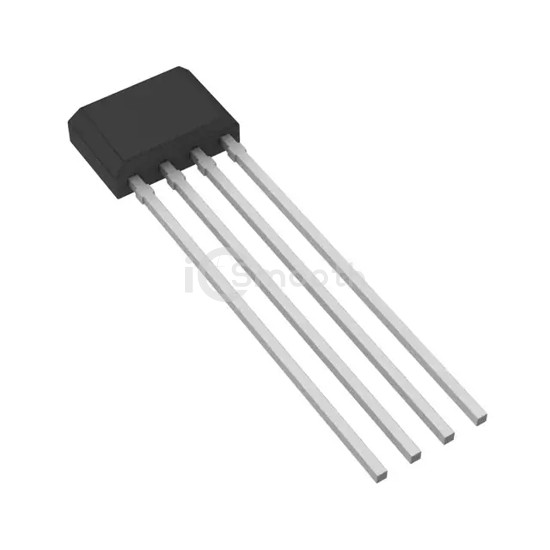

AH276UZ4-CG1 - Diodes Incorporated - Magnetic Sensors - Switches (Solid State)
REF: AH276UZ4-CG1 Diodes Incorporated
AH276UZ4-CG1

Diodes Incorporated

MAGNETIC SWITCH LATCH TO94

AH276UZ4-CG1 is a Magnetic Sensors - Switches (Solid State) manufactured by Diodes Incorporated. MAGNETIC SWITCH LATCH TO94. Key specifications: mounting type Through Hole, operating temperature -20°C ~ 85°C (TA), voltage - supply 3.5V ~ 16V, package / case 4-SSIP.

Request a Quote

In Stock: 6,470

Specifications

15 parameters
Product StatusActive
FunctionLatch
TechnologyHall Effect
PolarizationSouth Pole
Sensing Range10mT Trip, -10mT Release
Test Condition25°C
Voltage - Supply3.5V ~ 16V
Current - Supply (Max)16mA
Current - Output (Max)350mA
Output TypeOpen Collector
FeaturesTemperature Compensated
Operating Temperature-20°C ~ 85°C (TA)
Mounting TypeThrough Hole
Supplier Device PackageTO-94
Package / Case4-SSIP
