AH276Q-PL-B-A

In Stock: 2,189

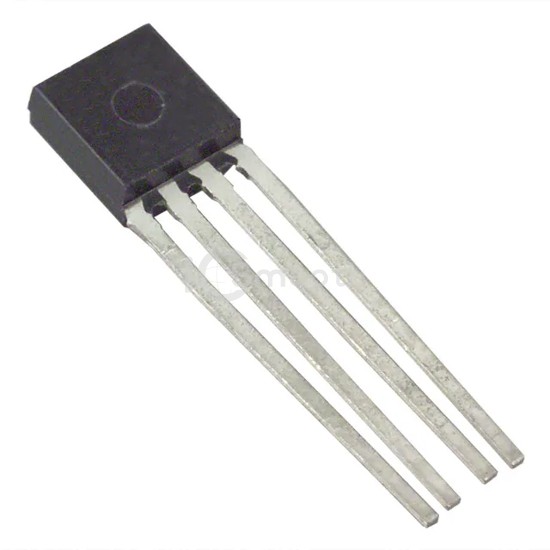

AH276Q-PL-B-A - Diodes Incorporated - Magnetic Sensors - Switches (Solid State)
REF: AH276Q-PL-B-A Diodes Incorporated
AH276Q-PL-B-A

Diodes Incorporated

MAGNETIC SWITCH LATCH 4SIP

AH276Q-PL-B-A is a Magnetic Sensors - Switches (Solid State) manufactured by Diodes Incorporated. MAGNETIC SWITCH LATCH 4SIP. Key specifications: mounting type Through Hole, operating temperature -20°C ~ 85°C (TA), voltage - supply 3.5V ~ 20V, package / case 4-SSIP.

Datasheet Request a Quote

In Stock: 2,189

Specifications

15 parameters
Product StatusObsolete
FunctionLatch
TechnologyHall Effect
PolarizationSouth Pole
Sensing Range5mT Trip, -5mT Release
Test Condition25°C
Voltage - Supply3.5V ~ 20V
Current - Supply (Max)25mA
Current - Output (Max)400mA
Output TypeOpen Collector
Features-
Operating Temperature-20°C ~ 85°C (TA)
Mounting TypeThrough Hole
Supplier Device Package4-SIP
Package / Case4-SSIP
