AH266Z4-AG1

In Stock: 2,074

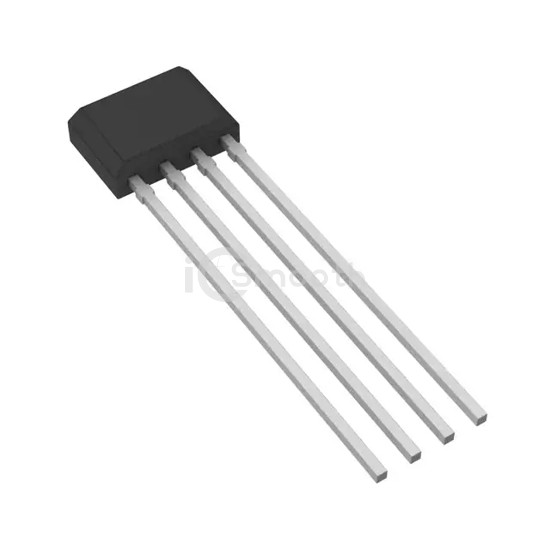

AH266Z4-AG1 - Diodes Incorporated - Magnetic Sensors - Switches (Solid State)
REF: AH266Z4-AG1 Diodes Incorporated
AH266Z4-AG1

Diodes Incorporated

MAGNETIC SWITCH LATCH TO94

AH266Z4-AG1 is a Magnetic Sensors - Switches (Solid State) manufactured by Diodes Incorporated. MAGNETIC SWITCH LATCH TO94. Key specifications: mounting type Through Hole, operating temperature -20°C ~ 85°C (TA), voltage - supply 4V ~ 28V, package / case 4-SSIP.

Request a Quote

In Stock: 2,074

Specifications

15 parameters
Product StatusActive
FunctionLatch
TechnologyHall Effect
PolarizationSouth Pole
Sensing Range7mT Trip, -7mT Release
Test Condition25°C
Voltage - Supply4V ~ 28V
Current - Supply (Max)10mA
Current - Output (Max)400mA
Output TypeOpen Collector
FeaturesTemperature Compensated
Operating Temperature-20°C ~ 85°C (TA)
Mounting TypeThrough Hole
Supplier Device PackageTO-94
Package / Case4-SSIP
