AH266K-PL-B-B

In Stock: 4,644

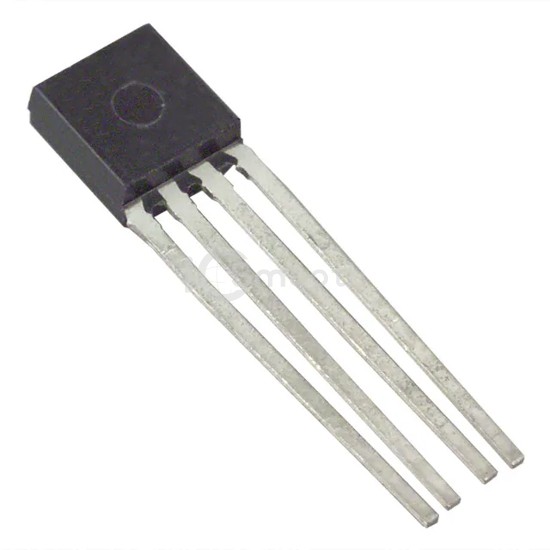

AH266K-PL-B-B - Diodes Incorporated - Magnetic Sensors - Switches (Solid State)
REF: AH266K-PL-B-B Diodes Incorporated
AH266K-PL-B-B

Diodes Incorporated

MAGNETIC SWITCH LATCH 4SIP

AH266K-PL-B-B is a Magnetic Sensors - Switches (Solid State) manufactured by Diodes Incorporated. MAGNETIC SWITCH LATCH 4SIP. Key specifications: mounting type Through Hole, operating temperature -20°C ~ 85°C (TA), voltage - supply 4V ~ 28V, package / case 4-SSIP.

Datasheet Request a Quote

In Stock: 4,644

Specifications

15 parameters
Product StatusObsolete
FunctionLatch
TechnologyHall Effect
PolarizationSouth Pole
Sensing Range10mT Trip, -10mT Release
Test Condition25°C
Voltage - Supply4V ~ 28V
Current - Supply (Max)10mA
Current - Output (Max)400mA
Output TypeOpen Collector
FeaturesTemperature Compensated
Operating Temperature-20°C ~ 85°C (TA)
Mounting TypeThrough Hole
Supplier Device Package4-SIP
Package / Case4-SSIP
