AH1815-Z-7

In Stock: 4,762

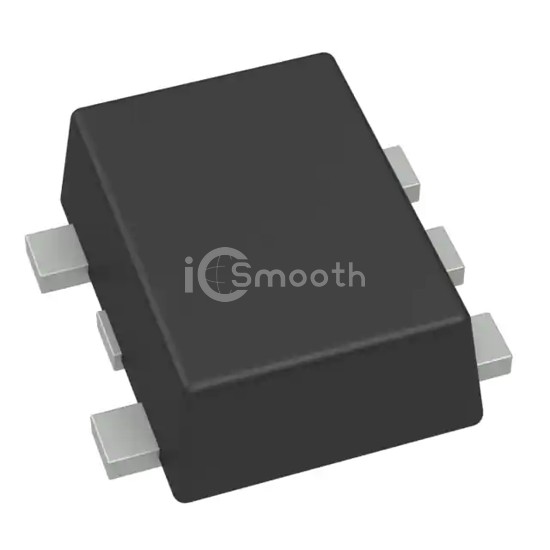

AH1815-Z-7 - Diodes Incorporated - Magnetic Sensors - Switches (Solid State)
REF: AH1815-Z-7 Diodes Incorporated
AH1815-Z-7

Diodes Incorporated

MAGNETIC SWITCH OMNIPOLAR SOT553

AH1815-Z-7 is a Magnetic Sensors - Switches (Solid State) manufactured by Diodes Incorporated. MAGNETIC SWITCH OMNIPOLAR SOT553. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), voltage - supply 2.5V ~ 5.5V, package / case SOT-553.

Datasheet Request a Quote

In Stock: 4,762

Tiered Pricing USD
1+ $0.5100 —
5+ $0.4420 -13%
10+ $0.4190 -18%
25+ $0.3904 -23%
50+ $0.3710 -27%
100+ $0.3533 -31%
500+ $0.3178 -38%
1,000+ $0.3046 -40% BEST

Specifications

15 parameters
Product StatusActive
FunctionOmnipolar Switch
TechnologyHall Effect
PolarizationNorth Pole, South Pole
Sensing Range±54mT Trip, ±49mT Release
Test Condition-40°C ~ 125°C
Voltage - Supply2.5V ~ 5.5V
Current - Supply (Max)12mA
Current - Output (Max)2.5mA
Output TypeOpen Drain
FeaturesSleep Mode
Operating Temperature-40°C ~ 125°C (TA)
Mounting TypeSurface Mount
Supplier Device PackageSOT-553
Package / CaseSOT-553
