AH1815-W-7

In Stock: 5,698

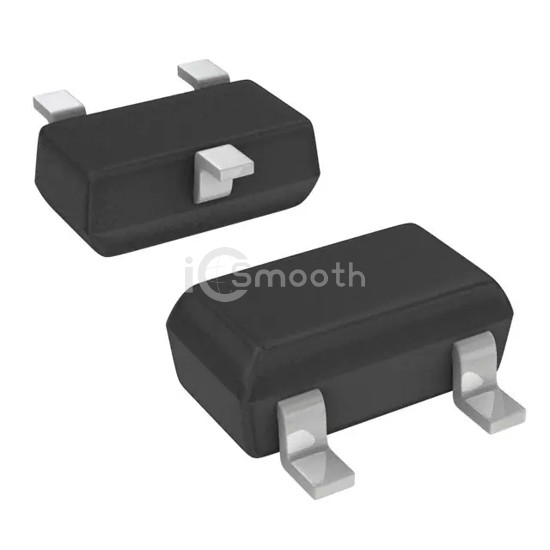

AH1815-W-7 - Diodes Incorporated - Magnetic Sensors - Switches (Solid State)
REF: AH1815-W-7 Diodes Incorporated
AH1815-W-7

Diodes Incorporated

MAGNETIC SWITCH OMNIPOL SC59-3

AH1815-W-7 is a Magnetic Sensors - Switches (Solid State) manufactured by Diodes Incorporated. MAGNETIC SWITCH OMNIPOL SC59-3. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), voltage - supply 2.5V ~ 5.5V, package / case TO-236-3, SC-59, SOT-23-3.

Datasheet Request a Quote

In Stock: 5,698

Tiered Pricing USD
1+ $0.3700 —
5+ $0.3240 -12%
10+ $0.3060 -17%
25+ $0.2844 -23%
50+ $0.2698 -27%
100+ $0.2564 -31%
500+ $0.2298 -38%
1,000+ $0.2199 -41% BEST

Specifications

15 parameters
Product StatusActive
FunctionOmnipolar Switch
TechnologyHall Effect
PolarizationNorth Pole, South Pole
Sensing Range±54mT Trip, ±49mT Release
Test Condition-40°C ~ 125°C
Voltage - Supply2.5V ~ 5.5V
Current - Supply (Max)6mA
Current - Output (Max)2.5mA
Output TypeOpen Drain
Features-
Operating Temperature-40°C ~ 125°C (TA)
Mounting TypeSurface Mount
Supplier Device PackageSC-59-3
Package / CaseTO-236-3, SC-59, SOT-23-3
