AH1809-P-B

In Stock: 9,869
AH1809-P-B - Diodes Incorporated - Magnetic Sensors - Switches (Solid State)
REF: AH1809-P-B Diodes Incorporated
AH1809-P-B

Diodes Incorporated

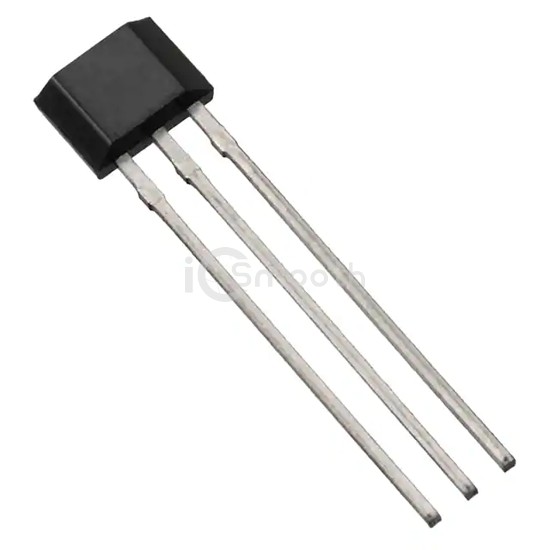

MAGNETIC SWITCH OMNIPOLAR 3SIP

AH1809-P-B is a Magnetic Sensors - Switches (Solid State) manufactured by Diodes Incorporated. MAGNETIC SWITCH OMNIPOLAR 3SIP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 125°C (TA), voltage - supply 2.5V ~ 5.5V, package / case 3-SIP.

Datasheet Request a Quote

In Stock: 9,869

Tiered Pricing USD
1+ $0.6300 —
5+ $0.5560 -12%
10+ $0.5260 -17%
25+ $0.4908 -22%
50+ $0.4670 -26%
100+ $0.4453 -29%
500+ $0.4017 -36%
1,000+ $0.3855 -39%
5,000+ $0.3529 -44% BEST

Specifications

15 parameters
Product StatusActive
FunctionOmnipolar Switch
TechnologyHall Effect
PolarizationNorth Pole, South Pole
Sensing Range±18.5mT Trip, ±17mT Release
Test Condition-40°C ~ 125°C
Voltage - Supply2.5V ~ 5.5V
Current - Supply (Max)6mA
Current - Output (Max)2.5mA
Output TypeOpen Drain
Features-
Operating Temperature-40°C ~ 125°C (TA)
Mounting TypeThrough Hole
Supplier Device Package3-SIP
Package / Case3-SIP
