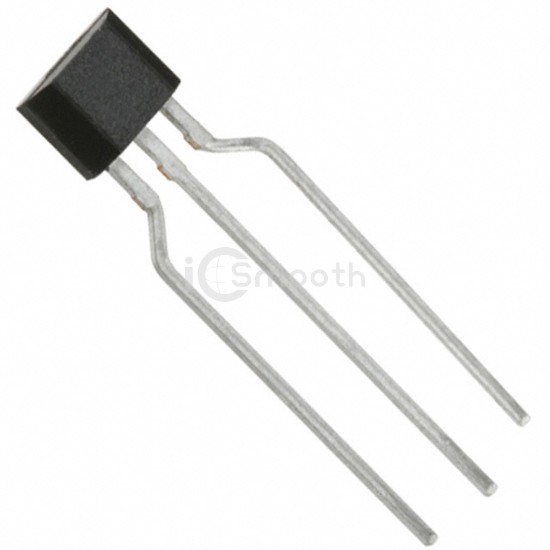

AH1809-P-A - Diodes Incorporated - Magnetic Sensors - Switches (Solid State)
REF: AH1809-P-A Diodes Incorporated
AH1809-P-A

Diodes Incorporated

MAGNETIC SWITCH OMNIPOLAR 3SIP

AH1809-P-A is a Magnetic Sensors - Switches (Solid State) manufactured by Diodes Incorporated. MAGNETIC SWITCH OMNIPOLAR 3SIP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 125°C (TA), voltage - supply 2.5V ~ 5.5V, package / case 3-SIP, Formed Leads.

Datasheet Request a Quote

In Stock: 2,185

Tiered Pricing USD
4,000+ $0.3570 —
8,000+ $0.3445 -3%
12,000+ $0.3377 -5%
20,000+ $0.3296 -8%
28,000+ $0.3246 -9% BEST

Specifications

15 parameters
Product StatusActive
FunctionOmnipolar Switch
TechnologyHall Effect
PolarizationNorth Pole, South Pole
Sensing Range±18.5mT Trip, ±17mT Release
Test Condition-40°C ~ 125°C
Voltage - Supply2.5V ~ 5.5V
Current - Supply (Max)6mA
Current - Output (Max)2.5mA
Output TypeOpen Drain
Features-
Operating Temperature-40°C ~ 125°C (TA)
Mounting TypeThrough Hole
Supplier Device Package3-SIP
Package / Case3-SIP, Formed Leads
