AH1808-P-B

In Stock: 9,195

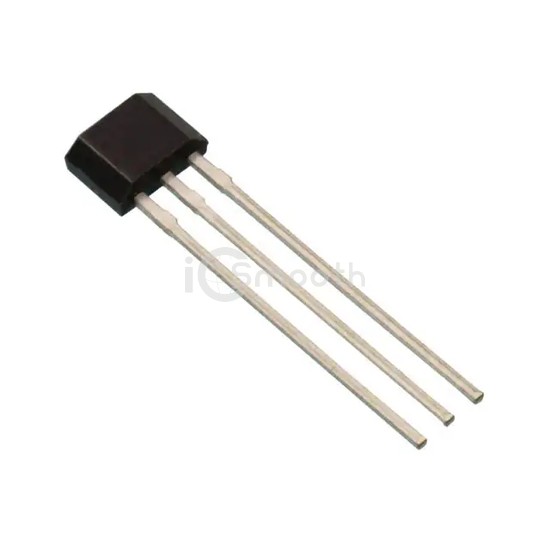

AH1808-P-B - Diodes Incorporated - Magnetic Sensors - Switches (Solid State)
REF: AH1808-P-B Diodes Incorporated
AH1808-P-B

Diodes Incorporated

MAGNETIC SWITCH OMNIPOLAR 3SIP

AH1808-P-B is a Magnetic Sensors - Switches (Solid State) manufactured by Diodes Incorporated. MAGNETIC SWITCH OMNIPOLAR 3SIP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C (TA), voltage - supply 2.5V ~ 5.5V, package / case 3-SIP.

Datasheet Request a Quote

In Stock: 9,195

Tiered Pricing USD
1+ $0.4500 —
5+ $0.3960 -12%
10+ $0.3760 -16%
25+ $0.3500 -22%
50+ $0.3328 -26%
100+ $0.3171 -30%
500+ $0.2854 -37%
1,000+ $0.2737 -39%
5,000+ $0.2500 -44% BEST

Specifications

15 parameters
Product StatusActive
FunctionOmnipolar Switch
TechnologyHall Effect
PolarizationNorth Pole, South Pole
Sensing Range±6mT Trip, ±5mT Release
Test Condition-40°C ~ 85°C
Voltage - Supply2.5V ~ 5.5V
Current - Supply (Max)16µA
Current - Output (Max)2.5mA
Output TypeOpen Drain
Features-
Operating Temperature-40°C ~ 85°C (TA)
Mounting TypeThrough Hole
Supplier Device Package3-SIP
Package / Case3-SIP
