AH1804-FA-7

In Stock: 2,003

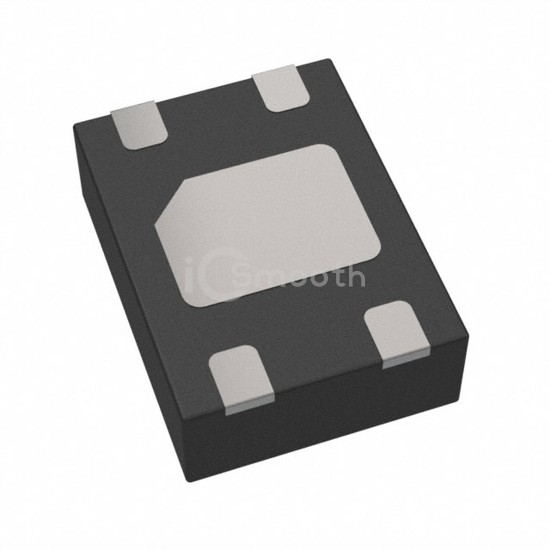

AH1804-FA-7 - Diodes Incorporated - Magnetic Sensors - Switches (Solid State)
REF: AH1804-FA-7 Diodes Incorporated
AH1804-FA-7

Diodes Incorporated

MAG SWITCH OMNIPOLAR DFN1216-4

AH1804-FA-7 is a Magnetic Sensors - Switches (Solid State) manufactured by Diodes Incorporated. MAG SWITCH OMNIPOLAR DFN1216-4. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply 2.5V ~ 3.6V, package / case 4-UDFN Exposed Pad.

Datasheet Request a Quote

In Stock: 2,003

Specifications

15 parameters
Product StatusDiscontinued at Digi-Key
FunctionOmnipolar Switch
TechnologyHall Effect
PolarizationNorth Pole, South Pole
Sensing Range±6mT Trip, ±1.5mT Release
Test Condition25°C
Voltage - Supply2.5V ~ 3.6V
Current - Supply (Max)12µA (Typ)
Current - Output (Max)-
Output TypePush-Pull
Features-
Operating Temperature-40°C ~ 85°C (TA)
Mounting TypeSurface Mount
Supplier Device PackageDFN1216-4
Package / Case4-UDFN Exposed Pad
