AH1801-SNG-7

In Stock: 9,290

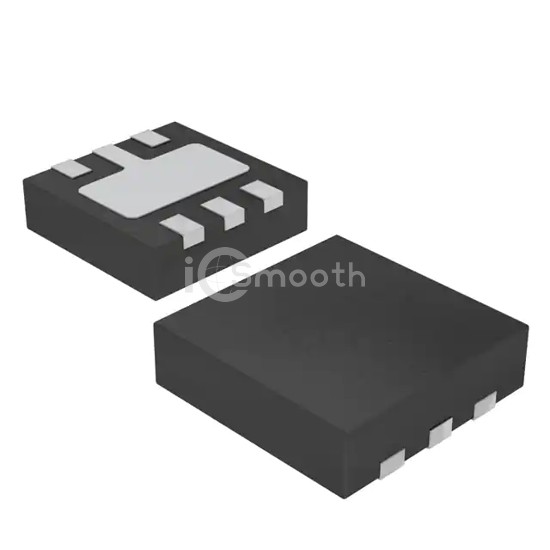

AH1801-SNG-7 - Diodes Incorporated - Magnetic Sensors - Switches (Solid State)
REF: AH1801-SNG-7 Diodes Incorporated
AH1801-SNG-7

Diodes Incorporated

MAG SWITCH OMNIPOLAR DFN2020-6

AH1801-SNG-7 is a Magnetic Sensors - Switches (Solid State) manufactured by Diodes Incorporated. MAG SWITCH OMNIPOLAR DFN2020-6. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply 2.5V ~ 5.5V, package / case 6-UDFN Exposed Pad.

Datasheet Request a Quote

In Stock: 9,290

Specifications

15 parameters
Product StatusObsolete
FunctionOmnipolar Switch
TechnologyHall Effect
PolarizationNorth Pole, South Pole
Sensing Range±6mT Trip, ±1mT Release
Test Condition25°C
Voltage - Supply2.5V ~ 5.5V
Current - Supply (Max)16µA
Current - Output (Max)-
Output TypeOpen Drain
Features-
Operating Temperature-40°C ~ 85°C (TA)
Mounting TypeSurface Mount
Supplier Device PackageU-DFN2020-6
Package / Case6-UDFN Exposed Pad
