AH1390-HK4-7

In Stock: 18,297

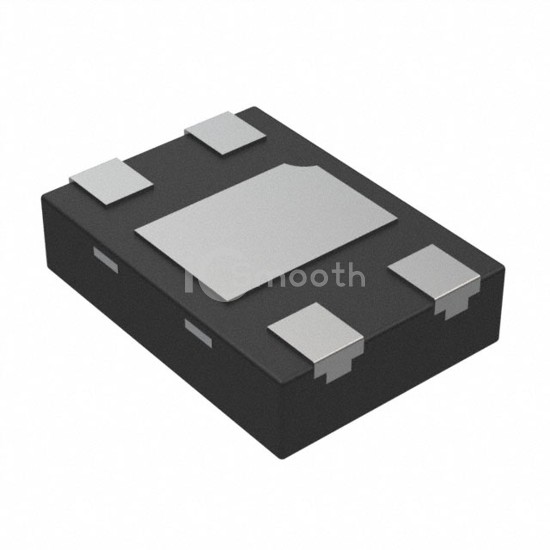

AH1390-HK4-7 - Diodes Incorporated - Magnetic Sensors - Switches (Solid State)
REF: AH1390-HK4-7 Diodes Incorporated
AH1390-HK4-7

Diodes Incorporated

MAGNETIC SWITCH UNIPOLAR DL 4DFN

AH1390-HK4-7 is a Magnetic Sensors - Switches (Solid State) manufactured by Diodes Incorporated. MAGNETIC SWITCH UNIPOLAR DL 4DFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply 1.6V ~ 3.6V, package / case 4-XFDFN Exposed Pad.

Datasheet Request a Quote

In Stock: 18,297

Tiered Pricing USD
1+ $0.2900 —
5+ $0.2540 -12%
10+ $0.2400 -17%
25+ $0.2228 -23%
50+ $0.2110 -27%
100+ $0.2004 -31%
500+ $0.1790 -38%
1,000+ $0.1711 -41% BEST

Specifications

15 parameters
Product StatusActive
FunctionUnipolar Switch, Dual
TechnologyHall Effect
PolarizationNorth Pole, South Pole
Sensing Range±2.4mT Trip, ±1.9mT Release
Test Condition25°C
Voltage - Supply1.6V ~ 3.6V
Current - Supply (Max)720µA
Current - Output (Max)1mA
Output TypePush-Pull
FeaturesSleep Mode
Operating Temperature-40°C ~ 85°C (TA)
Mounting TypeSurface Mount
Supplier Device PackageX2-DFN1410-4
Package / Case4-XFDFN Exposed Pad
