AH1389-HK4-7

In Stock: 1,248

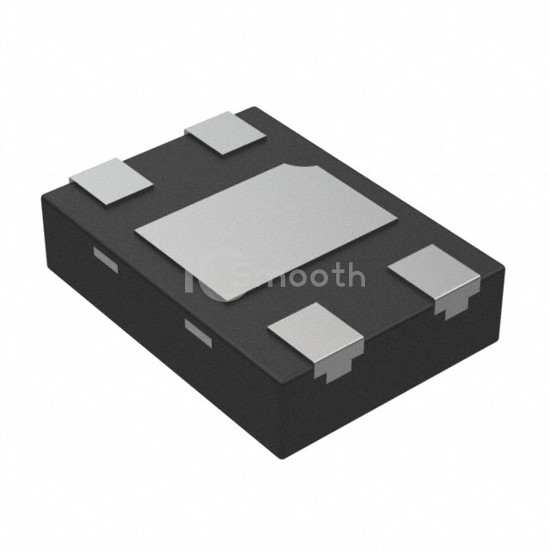

AH1389-HK4-7 - Diodes Incorporated - Magnetic Sensors - Switches (Solid State)
REF: AH1389-HK4-7 Diodes Incorporated
AH1389-HK4-7

Diodes Incorporated

MAGNETIC SWITCH UNIPOLAR DL 4DFN

AH1389-HK4-7 is a Magnetic Sensors - Switches (Solid State) manufactured by Diodes Incorporated. MAGNETIC SWITCH UNIPOLAR DL 4DFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply 1.6V ~ 3.6V, package / case 4-XFDFN Exposed Pad.

Datasheet Request a Quote

In Stock: 1,248

Tiered Pricing USD
1+ $0.5400 —
5+ $0.4760 -12%
10+ $0.4500 -17%
25+ $0.4192 -22%
50+ $0.3986 -26%
100+ $0.3798 -30%
500+ $0.3419 -37%
1,000+ $0.3279 -39% BEST

Specifications

15 parameters
Product StatusActive
FunctionUnipolar Switch, Dual
TechnologyHall Effect
PolarizationNorth Pole, South Pole
Sensing Range-25mT Trip, -20mT Release, 25mT Trip, 20mT Release
Test Condition25°C
Voltage - Supply1.6V ~ 3.6V
Current - Supply (Max)2.1mA
Current - Output (Max)2.5mA
Output TypePush-Pull
FeaturesSleep Mode
Operating Temperature-40°C ~ 85°C
Mounting TypeSurface Mount
Supplier Device PackageX2-DFN1410-4
Package / Case4-XFDFN Exposed Pad
