AH1388-HK4-7

In Stock: 48,621

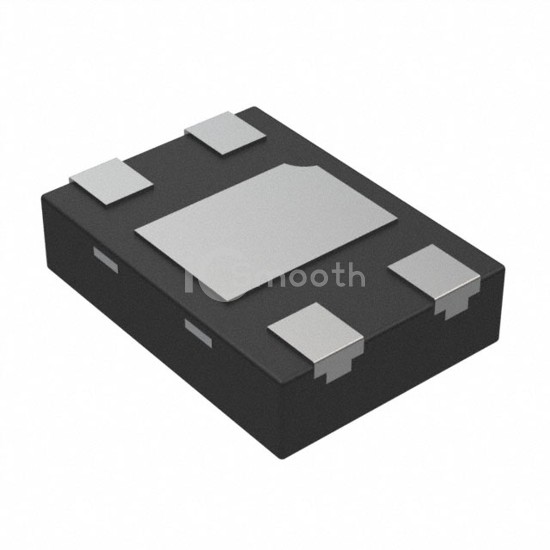

AH1388-HK4-7 - Diodes Incorporated - Magnetic Sensors - Switches (Solid State)
REF: AH1388-HK4-7 Diodes Incorporated
AH1388-HK4-7

Diodes Incorporated

MAGNETIC SWITCH UNIPOLAR DL 4DFN

AH1388-HK4-7 is a Magnetic Sensors - Switches (Solid State) manufactured by Diodes Incorporated. MAGNETIC SWITCH UNIPOLAR DL 4DFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply 1.6V ~ 3.6V, package / case 4-XFDFN Exposed Pad.

Datasheet Request a Quote

In Stock: 48,621

Tiered Pricing USD
1+ $0.3100 —
5+ $0.2660 -14%
10+ $0.2510 -19%
25+ $0.2328 -25%
50+ $0.2208 -29%
100+ $0.2096 -32%
500+ $0.1874 -40%
1,000+ $0.1791 -42% BEST

Specifications

15 parameters
Product StatusActive
FunctionUnipolar Switch, Dual
TechnologyHall Effect
PolarizationNorth Pole, South Pole
Sensing Range±2.5mT Trip, ±2mT Release
Test Condition-40°C ~ 85°C
Voltage - Supply1.6V ~ 3.6V
Current - Supply (Max)40µA
Current - Output (Max)1mA
Output TypePush-Pull
FeaturesSleep Mode
Operating Temperature-40°C ~ 85°C
Mounting TypeSurface Mount
Supplier Device PackageX2-DFN1410-4
Package / Case4-XFDFN Exposed Pad
