Name: CMS25N03V8-HF
Brand: Comchip Technology
SKU: CMS25N03V8-HF
Availability: InStock

REF: CMS25N03V8-HF Comchip Technology

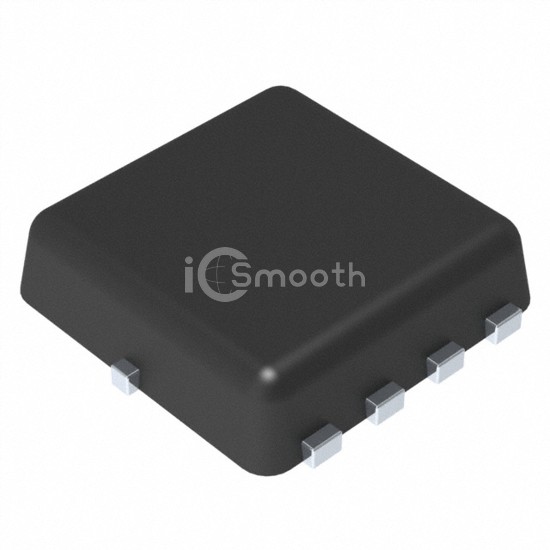

CMS25N03V8-HF

MOSFET N-CH 30V 25A 8PDFN

CMS25N03V8-HF is a Transistors - FETs, MOSFETs - Single manufactured by Comchip Technology. MOSFET N-CH 30V 25A 8PDFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerWDFN.

Datasheet Request a Quote

In Stock: 5,965

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30 V
Current - Continuous Drain (Id) @ 25°C	25A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	18mOhm @ 10A, 10V
Vgs(th) (Max) @ Id	2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	7.2 nC @ 4.5 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	572 pF @ 15 V
FET Feature	-
Power Dissipation (Max)	1.7W (Ta), 20W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	8-PDFN (SPR-PAK ) (3.3x3.3)
Package / Case	8-PowerWDFN
