Name: CMS16P06H8-HF
Brand: Comchip Technology
SKU: CMS16P06H8-HF
Availability: InStock

REF: CMS16P06H8-HF Comchip Technology

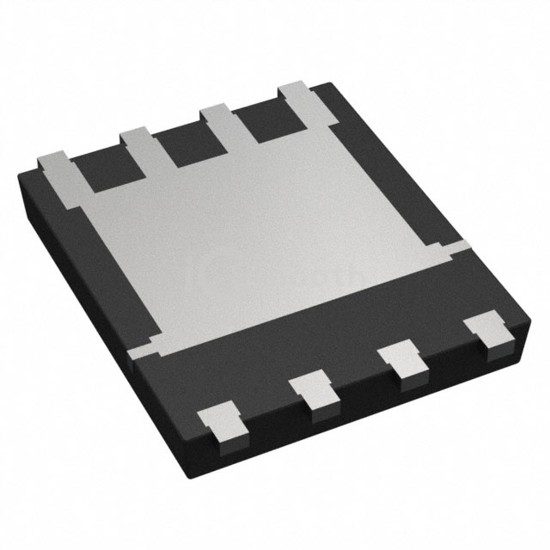

CMS16P06H8-HF

MOSFET P-CH 60V 5A/16A DFN5X6

CMS16P06H8-HF is a Transistors - FETs, MOSFETs - Single manufactured by Comchip Technology. MOSFET P-CH 60V 5A/16A DFN5X6. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerTDFN.

Datasheet Request a Quote

In Stock: 3,277

Specifications

17 parameters

Product Status	Obsolete
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	60 V
Current - Continuous Drain (Id) @ 25°C	5A (Ta), 16A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	48mOhm @ 8A, 10V
Vgs(th) (Max) @ Id	2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	22 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	1256 pF @ 30 V
FET Feature	-
Power Dissipation (Max)	2W (Ta), 25W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	DFN5x6 (PR-PAK)
Package / Case	8-PowerTDFN
