Name: CMS03N06T-HF
Brand: Comchip Technology
SKU: CMS03N06T-HF
Price: 0.10 USD
Availability: InStock

REF: CMS03N06T-HF Comchip Technology

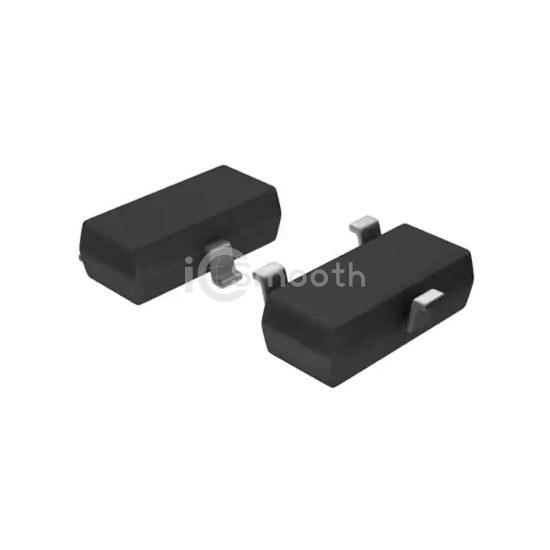

CMS03N06T-HF

Comchip Technology

MOSFET N-CH 60V 2.2A SOT-23

CMS03N06T-HF is a Transistors - FETs, MOSFETs - Single manufactured by Comchip Technology. MOSFET N-CH 60V 2.2A SOT-23. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case TO-236-3, SC-59, SOT-23-3.

Datasheet Request a Quote

In Stock: 5,495

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	60 V
Current - Continuous Drain (Id) @ 25°C	3A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	105mOhm @ 3A, 10V
Vgs(th) (Max) @ Id	2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	14.6 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	510 pF @ 30 V
FET Feature	-
Power Dissipation (Max)	1.7W (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	SOT-23-3
Package / Case	TO-236-3, SC-59, SOT-23-3
