CDBHM180L-HF

In Stock: 5,121

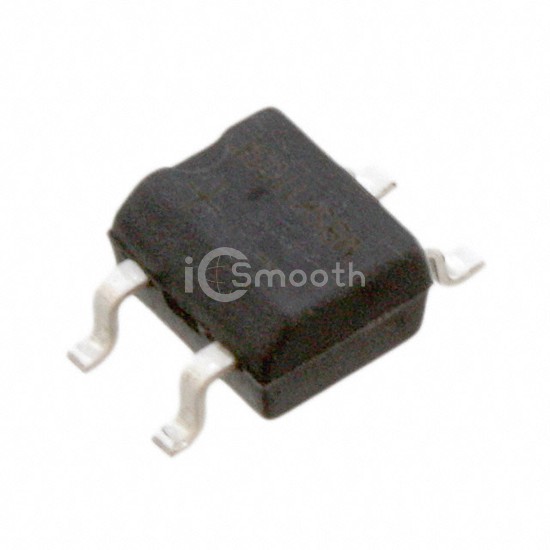

CDBHM180L-HF - Comchip Technology - Diodes - Bridge Rectifiers
REF: CDBHM180L-HF Comchip Technology
CDBHM180L-HF

Comchip Technology

BRIDGE RECT 1PHASE 80V 1A MBS

CDBHM180L-HF is a Diodes - Bridge Rectifiers manufactured by Comchip Technology. BRIDGE RECT 1PHASE 80V 1A MBS. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case TO-269AA, 4-BESOP.

Datasheet Request a Quote

In Stock: 5,121

Tiered Pricing USD
2,500+ $0.3106 —
5,000+ $0.2867 -8%
7,500+ $0.2746 -12%
12,500+ $0.2609 -16%
17,500+ $0.2588 -17% BEST

Specifications

11 parameters
Product StatusActive
Diode TypeSingle Phase
TechnologySchottky
Voltage - Peak Reverse (Max)80 V
Current - Average Rectified (Io)1 A
Voltage - Forward (Vf) (Max) @ If850 mV @ 1 A
Current - Reverse Leakage @ Vr500 µA @ 80 V
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / CaseTO-269AA, 4-BESOP
Supplier Device PackageMBS
