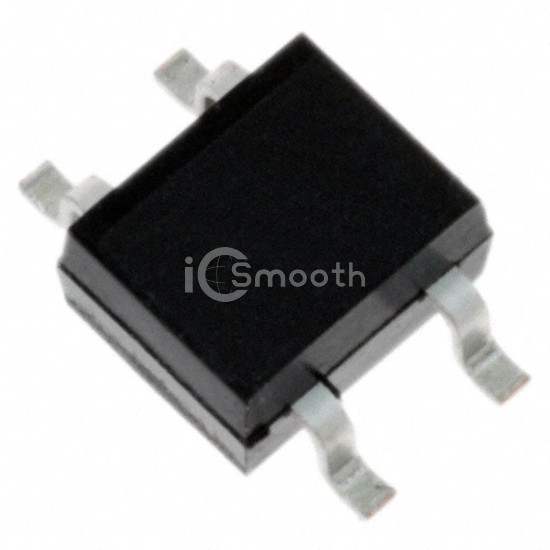

Name: B10S-HF
Brand: Comchip Technology
SKU: B10S-HF
Price: 0.12 USD
Availability: InStock

REF: B10S-HF Comchip Technology

B10S-HF

BRIDGE RECT 1PHASE 1KV 800MA MBS

B10S-HF is a Diodes - Bridge Rectifiers manufactured by Comchip Technology. BRIDGE RECT 1PHASE 1KV 800MA MBS. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case TO-269AA, 4-BESOP.

Datasheet Request a Quote

In Stock: 2,268

Tiered Pricing USD

3,000+ $0.1193 —

6,000+ $0.1086 -9%

9,000+ $0.0924 -23%

15,000+ $0.0909 -24%

21,000+ $0.0906 -24%

30,000+ $0.0893 -25%

75,000+ $0.0834 -30% BEST

Specifications

11 parameters

Product Status	Active
Diode Type	Single Phase
Technology	Standard
Voltage - Peak Reverse (Max)	1 kV
Current - Average Rectified (Io)	800 mA
Voltage - Forward (Vf) (Max) @ If	1.1 V @ 800 mA

Current - Reverse Leakage @ Vr	5 µA @ 1000 V
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	TO-269AA, 4-BESOP
Supplier Device Package	MBS
