CU103603

In Stock: 52

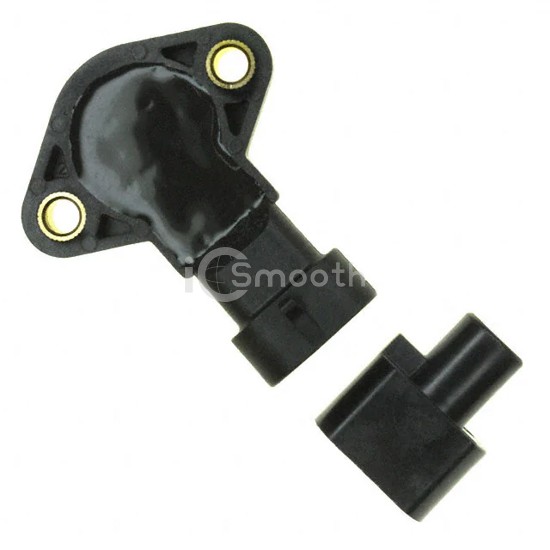

CU103603 - ZF Electronics - Position Sensors - Angle, Linear Position Measuring
REF: CU103603 ZF Electronics
CU103603

ZF Electronics

SENSOR ANGLE 45DEG CONNECTOR

CU103603 is a Position Sensors - Angle, Linear Position Measuring manufactured by ZF Electronics. SENSOR ANGLE 45DEG CONNECTOR. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 125°C, voltage - supply 5V, package / case Box with Connector.

Datasheet Request a Quote

In Stock: 52

Specifications

17 parameters
Product StatusActive
For MeasuringAngle
TechnologyHall Effect
Rotation Angle - Electrical, Mechanical0° ~ 45°, Continuous
Linear Range-
OutputAnalog Voltage
Output SignalClockwise Increase
Actuator TypeExternal Magnet, Included
Linearity±3.5%
Resistance-
Resistance Tolerance-
Voltage - Supply5V
Mounting TypeChassis Mount
Termination StyleConnector
Operating Temperature-40°C ~ 125°C
Package / CaseBox with Connector
Supplier Device Package-
