CU103602

In Stock: 2,001

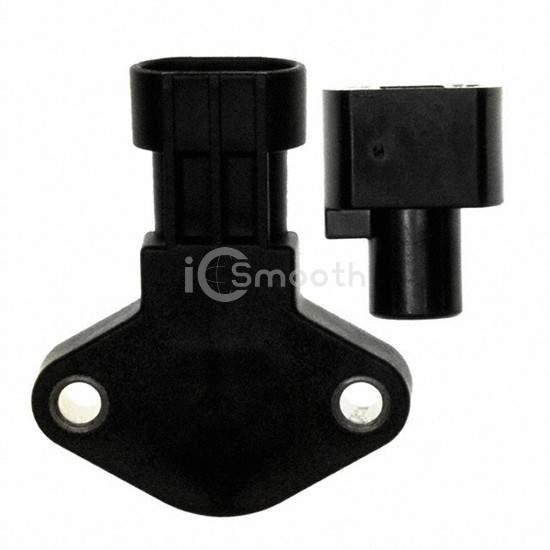

CU103602 - ZF Electronics - Position Sensors - Angle, Linear Position Measuring
REF: CU103602 ZF Electronics
CU103602

ZF Electronics

SENSOR ANGLE 360DEG CONNECTOR

CU103602 is a Position Sensors - Angle, Linear Position Measuring manufactured by ZF Electronics. SENSOR ANGLE 360DEG CONNECTOR. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 125°C, voltage - supply 5V, package / case Box with Connector.

Datasheet Request a Quote

In Stock: 2,001

Tiered Pricing USD
1+ $52.0500 —
5+ $48.0080 -8%
10+ $46.5030 -11%
25+ $44.7032 -14%
50+ $43.4718 -16%
100+ $42.3415 -19% BEST

Specifications

17 parameters
Product StatusActive
For MeasuringAngle
TechnologyHall Effect
Rotation Angle - Electrical, Mechanical0° ~ 360°, Continuous
Linear Range-
OutputAnalog Voltage
Output SignalClockwise Increase
Actuator TypeExternal Magnet, Included
Linearity±3.5%
Resistance-
Resistance Tolerance-
Voltage - Supply5V
Mounting TypeChassis Mount
Termination StyleConnector
Operating Temperature-40°C ~ 125°C
Package / CaseBox with Connector
Supplier Device Package-
