AN920036

In Stock: 6,007

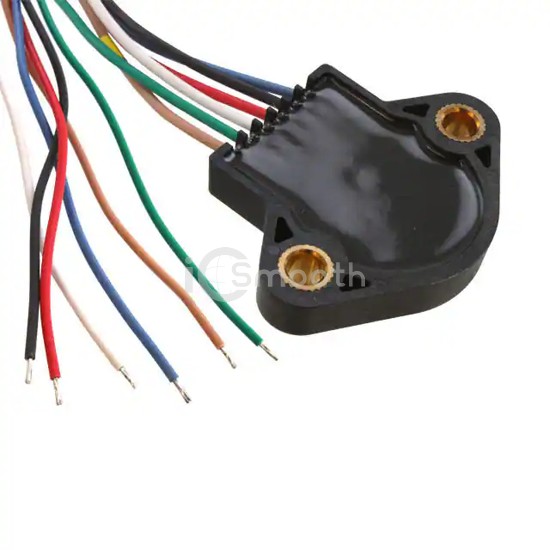

AN920036 - ZF Electronics - Position Sensors - Angle, Linear Position Measuring
REF: AN920036 ZF Electronics
AN920036

ZF Electronics

SENSOR ANGLE 90DEG WIRE LEADS

AN920036 is a Position Sensors - Angle, Linear Position Measuring manufactured by ZF Electronics. SENSOR ANGLE 90DEG WIRE LEADS. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 125°C, voltage - supply 5V, package / case Box with Wire Leads.

Datasheet Request a Quote

In Stock: 6,007

Specifications

17 parameters
Product StatusActive
For MeasuringAngle
TechnologyHall Effect
Rotation Angle - Electrical, Mechanical0° ~ 90°, Continuous
Linear Range-
OutputAnalog Voltage
Output SignalClockwise Increase
Actuator TypeExternal Magnet, Not Included
Linearity±3.5%
Resistance-
Resistance Tolerance-
Voltage - Supply5V
Mounting TypeChassis Mount
Termination StyleWire Leads
Operating Temperature-40°C ~ 125°C
Package / CaseBox with Wire Leads
Supplier Device Package-
