AN920032

In Stock: 7,386

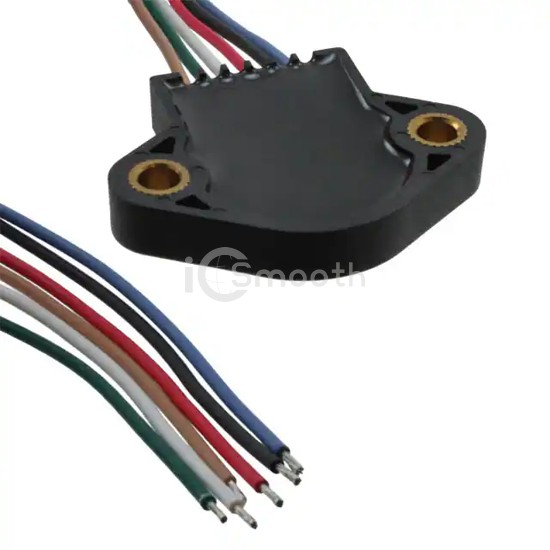

AN920032 - ZF Electronics - Position Sensors - Angle, Linear Position Measuring
REF: AN920032 ZF Electronics
AN920032

ZF Electronics

SENSOR ANGLE 360DEG WIRE LEADS

AN920032 is a Position Sensors - Angle, Linear Position Measuring manufactured by ZF Electronics. SENSOR ANGLE 360DEG WIRE LEADS. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 125°C, voltage - supply 5V, package / case Box with Wire Leads.

Datasheet Request a Quote

In Stock: 7,386

Specifications

17 parameters
Product StatusActive
For MeasuringAngle
TechnologyHall Effect
Rotation Angle - Electrical, Mechanical0° ~ 360°, Continuous
Linear Range-
OutputAnalog Voltage
Output SignalClockwise Increase
Actuator TypeExternal Magnet, Included
Linearity±3.5%
Resistance-
Resistance Tolerance-
Voltage - Supply5V
Mounting TypeChassis Mount
Termination StyleWire Leads
Operating Temperature-40°C ~ 125°C
Package / CaseBox with Wire Leads
Supplier Device Package-
