AN820002

In Stock: 7,367

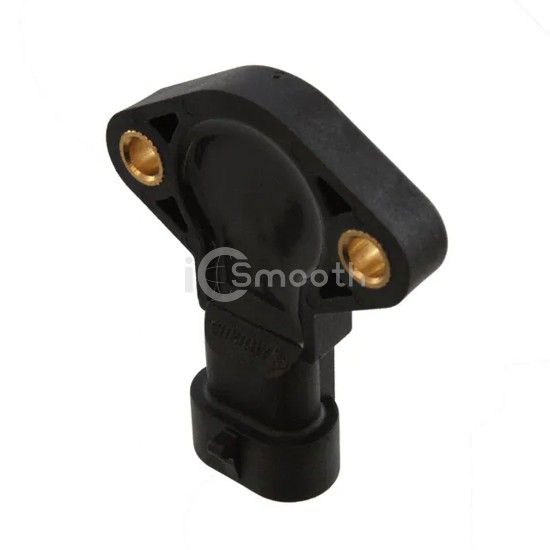

AN820002 - ZF Electronics - Position Sensors - Angle, Linear Position Measuring
REF: AN820002 ZF Electronics
AN820002

ZF Electronics

SENSOR ANGLE 360DEG CONNECTOR

AN820002 is a Position Sensors - Angle, Linear Position Measuring manufactured by ZF Electronics. SENSOR ANGLE 360DEG CONNECTOR. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 125°C, voltage - supply 5V, package / case Box with Connector.

Request a Quote

In Stock: 7,367

Tiered Pricing USD
1+ $45.7900 —
5+ $42.1740 -8%
10+ $40.8290 -11%
25+ $39.2200 -14%
50+ $38.1188 -17%
100+ $37.1085 -19% BEST

Specifications

17 parameters
Product StatusActive
For MeasuringAngle
TechnologyHall Effect
Rotation Angle - Electrical, Mechanical0° ~ 360°, Continuous
Linear Range-
OutputAnalog Voltage
Output SignalClockwise Increase
Actuator TypeExternal Magnet, Not Included
Linearity±3.5%
Resistance-
Resistance Tolerance-
Voltage - Supply5V
Mounting TypeChassis Mount
Termination StyleConnector
Operating Temperature-40°C ~ 125°C
Package / CaseBox with Connector
Supplier Device Package-
