Name: CXDM6053N TR PBFREE
Brand: Central Semiconductor Corp
SKU: CXDM6053N TR PBFREE
Price: 1.02 USD
Availability: InStock

REF: CXDM6053N TR PBFREE Central Semiconductor Corp

CXDM6053N TR PBFREE

Central Semiconductor Corp

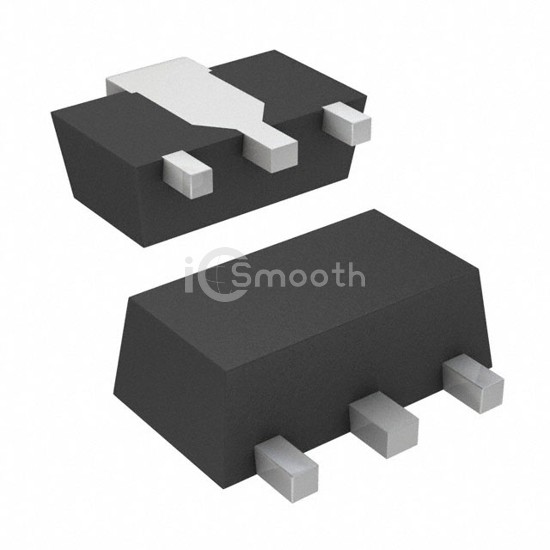

MOSFET N-CH 60V 5.3A SOT-89

CXDM6053N TR PBFREE is a Transistors - FETs, MOSFETs - Single manufactured by Central Semiconductor Corp. MOSFET N-CH 60V 5.3A SOT-89. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case TO-243AA.

Datasheet Request a Quote

In Stock: 472

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	60 V
Current - Continuous Drain (Id) @ 25°C	5.3A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	41mOhm @ 5.3A, 10V
Vgs(th) (Max) @ Id	3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	8.8 nC @ 5 V

Vgs (Max)	20V
Input Capacitance (Ciss) (Max) @ Vds	920 pF @ 30 V
FET Feature	-
Power Dissipation (Max)	1.2W (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	SOT-89
Package / Case	TO-243AA
