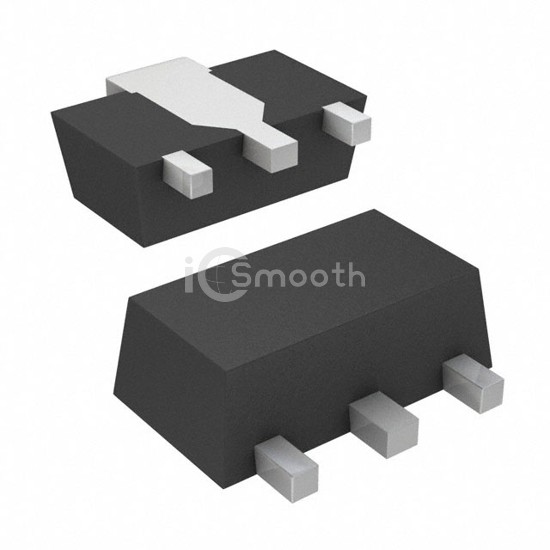

CXDM4060P TR PBFREE

Central Semiconductor Corp

MOSFET P-CH 40V 6A SOT-89

CXDM4060P TR PBFREE is a Transistors - FETs, MOSFETs - Single manufactured by Central Semiconductor Corp. MOSFET P-CH 40V 6A SOT-89. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case TO-243AA.

Datasheet Request a Quote

In Stock: 4,718

Specifications

17 parameters

Product Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	40 V
Current - Continuous Drain (Id) @ 25°C	6A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	65mOhm @ 6A, 10V
Vgs(th) (Max) @ Id	3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	6.5 nC @ 4.5 V

Vgs (Max)	20V
Input Capacitance (Ciss) (Max) @ Vds	750 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	1.2W (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	SOT-89
Package / Case	TO-243AA
