Name: CXDM3069N TR PBFREE
Brand: Central Semiconductor Corp
SKU: CXDM3069N TR PBFREE
Price: 0.66 USD
Availability: InStock

REF: CXDM3069N TR PBFREE Central Semiconductor Corp

CXDM3069N TR PBFREE

Central Semiconductor Corp

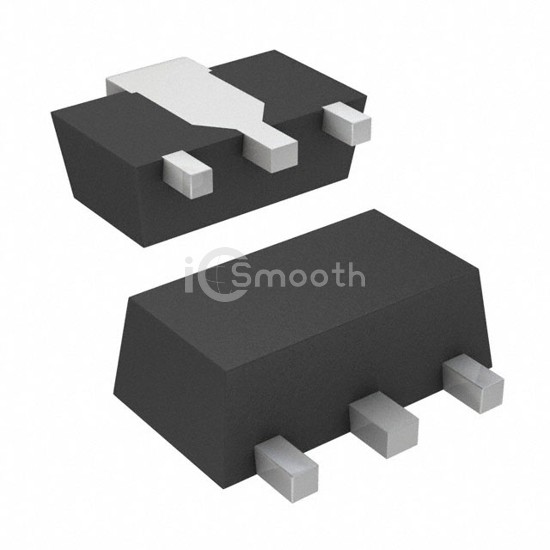

MOSFET N-CH 30V 6.9A SOT-89

CXDM3069N TR PBFREE is a Transistors - FETs, MOSFETs - Single manufactured by Central Semiconductor Corp. MOSFET N-CH 30V 6.9A SOT-89. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case TO-243AA.

Datasheet Request a Quote

In Stock: 3,147

Specifications

17 parameters

Product Status	Last Time Buy
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30 V
Current - Continuous Drain (Id) @ 25°C	6.9A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	2.5V, 10V
Rds On (Max) @ Id, Vgs	30mOhm @ 7A, 10V
Vgs(th) (Max) @ Id	1.4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	11 nC @ 10 V

Vgs (Max)	12V
Input Capacitance (Ciss) (Max) @ Vds	580 pF @ 15 V
FET Feature	-
Power Dissipation (Max)	1.2W (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	SOT-89
Package / Case	TO-243AA
