Name: CWDM305P TR13 PBFREE
Brand: Central Semiconductor Corp
SKU: CWDM305P TR13 PBFREE
Price: 0.12 USD
Availability: InStock

REF: CWDM305P TR13 PBFREE Central Semiconductor Corp

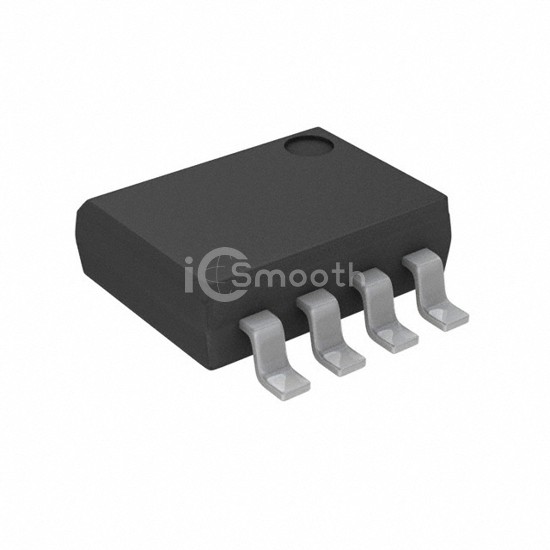

CWDM305P TR13 PBFREE

Central Semiconductor Corp

MOSFET P-CH 30V 5.3A 8SOIC

CWDM305P TR13 PBFREE is a Transistors - FETs, MOSFETs - Single manufactured by Central Semiconductor Corp. MOSFET P-CH 30V 5.3A 8SOIC. Key specifications: mounting type Surface Mount, package / case 8-SOIC (0.154", 3.90mm Width).

Datasheet Request a Quote

In Stock: 7,680

Specifications

17 parameters

Product Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30 V
Current - Continuous Drain (Id) @ 25°C	5.3A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	5V, 10V
Rds On (Max) @ Id, Vgs	72mOhm @ 2.7A, 10V
Vgs(th) (Max) @ Id	3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	7 nC @ 5 V

Vgs (Max)	16V
Input Capacitance (Ciss) (Max) @ Vds	590 pF @ 10 V
FET Feature	-
Power Dissipation (Max)	2W (Ta)
Operating Temperature	-
Mounting Type	Surface Mount
Supplier Device Package	8-SOIC
Package / Case	8-SOIC (0.154", 3.90mm Width)
