Name: CTLDM7590 TR
Brand: Central Semiconductor Corp
SKU: CTLDM7590 TR
Availability: InStock

REF: CTLDM7590 TR Central Semiconductor Corp

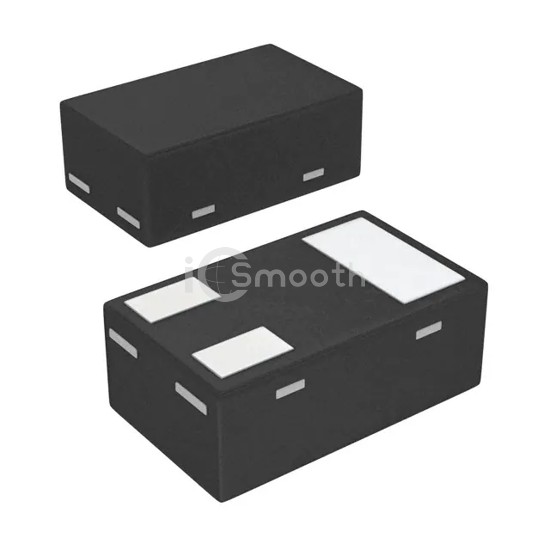

CTLDM7590 TR

MOSFET P-CH 20V 140MA TLM3D6D8

CTLDM7590 TR is a Transistors - FETs, MOSFETs - Single manufactured by Central Semiconductor Corp. MOSFET P-CH 20V 140MA TLM3D6D8. Key specifications: mounting type Surface Mount, operating temperature -65°C ~ 150°C (TJ), package / case 3-XFDFN.

Datasheet Request a Quote

In Stock: 8,989

Specifications

17 parameters

Product Status	Obsolete
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	20 V
Current - Continuous Drain (Id) @ 25°C	140mA (Ta)
Drive Voltage (Max Rds On, Min Rds On)	1.2V, 4.5V
Rds On (Max) @ Id, Vgs	5Ohm @ 100mA, 4.5V
Vgs(th) (Max) @ Id	1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	0.5 nC @ 4.5 V

Vgs (Max)	8V
Input Capacitance (Ciss) (Max) @ Vds	10 pF @ 15 V
FET Feature	-
Power Dissipation (Max)	125mW (Ta)
Operating Temperature	-65°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	TLM3D6D8
Package / Case	3-XFDFN
