Name: CQ202-4M
Brand: Central Semiconductor Corp
SKU: CQ202-4M
Availability: InStock

REF: CQ202-4M Central Semiconductor Corp

CQ202-4M

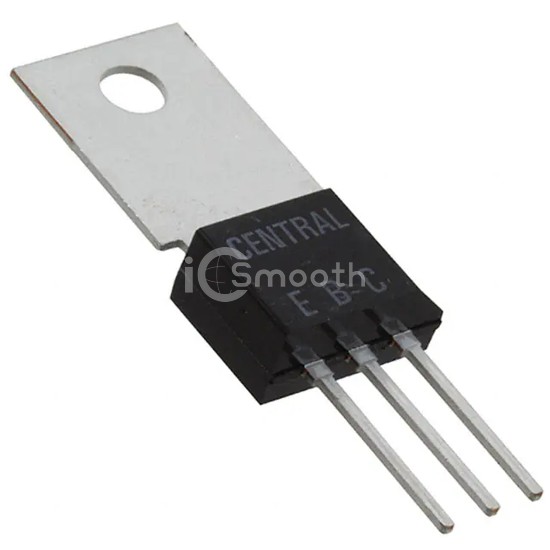

TRIAC 4A TH TO-202-2

CQ202-4M is a Thyristors - TRIACs manufactured by Central Semiconductor Corp. TRIAC 4A TH TO-202-2. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 125°C (TJ), package / case TO-202 Long Tab.

Datasheet Request a Quote

In Stock: 2,594

Specifications

13 parameters

Product Status	Obsolete
Triac Type	Internally Triggered
Voltage - Off State	600 V
Current - On State (It (RMS)) (Max)	4 A
Voltage - Gate Trigger (Vgt) (Max)	2.5 V
Current - Non Rep. Surge 50, 60Hz (Itsm)	-
Current - Gate Trigger (Igt) (Max)	50 mA

Current - Hold (Ih) (Max)	25 mA
Configuration	Single
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-202 Long Tab
Supplier Device Package	TO-202
