Name: CQ202-4BS-LF02
Brand: Central Semiconductor Corp
SKU: CQ202-4BS-LF02
Availability: InStock

REF: CQ202-4BS-LF02 Central Semiconductor Corp

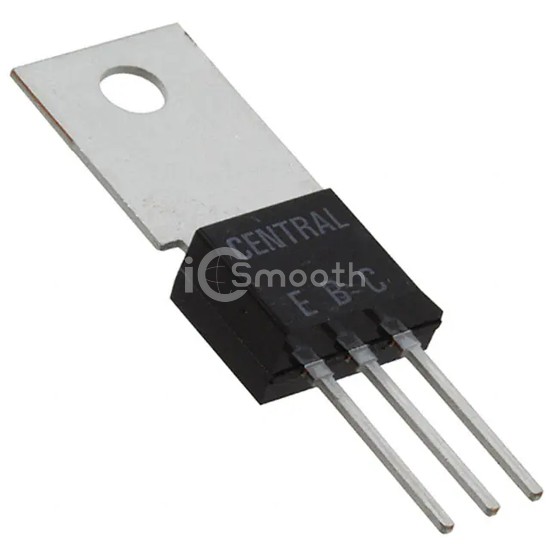

CQ202-4BS-LF02

TRIAC INT TRIGG 200V 4A TO-202

CQ202-4BS-LF02 is a Thyristors - TRIACs manufactured by Central Semiconductor Corp. TRIAC INT TRIGG 200V 4A TO-202. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 125°C, package / case TO-202 Long Tab.

Request a Quote

In Stock: 9,036

Specifications

13 parameters

Product Status	Obsolete
Triac Type	Internally Triggered
Voltage - Off State	200 V
Current - On State (It (RMS)) (Max)	4 A
Voltage - Gate Trigger (Vgt) (Max)	1.75 V
Current - Non Rep. Surge 50, 60Hz (Itsm)	40A, 35A
Current - Gate Trigger (Igt) (Max)	9 mA

Current - Hold (Ih) (Max)	5 mA
Configuration	Single
Operating Temperature	-40°C ~ 125°C
Mounting Type	Through Hole
Package / Case	TO-202 Long Tab
Supplier Device Package	TO-202
