Name: CMUDM7001 TR PBFREE
Brand: Central Semiconductor Corp
SKU: CMUDM7001 TR PBFREE
Price: 0.53 USD
Availability: InStock

REF: CMUDM7001 TR PBFREE Central Semiconductor Corp

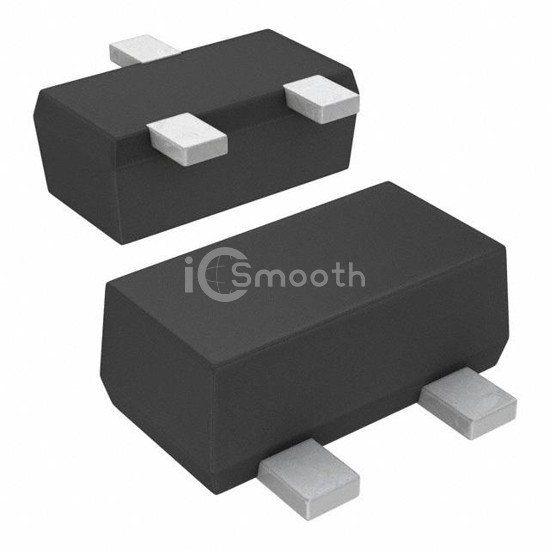

CMUDM7001 TR PBFREE

Central Semiconductor Corp

MOSFET N-CH 20V 100MA SOT523

CMUDM7001 TR PBFREE is a Transistors - FETs, MOSFETs - Single manufactured by Central Semiconductor Corp. MOSFET N-CH 20V 100MA SOT523. Key specifications: mounting type Surface Mount, operating temperature -65°C ~ 150°C (TJ), package / case SC-89, SOT-490.

Datasheet Request a Quote

In Stock: 3,963

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	20 V
Current - Continuous Drain (Id) @ 25°C	100mA (Ta)
Drive Voltage (Max Rds On, Min Rds On)	1.5V, 4V
Rds On (Max) @ Id, Vgs	3Ohm @ 10mA, 4V
Vgs(th) (Max) @ Id	900mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs	0.57 nC @ 4.5 V

Vgs (Max)	10V
Input Capacitance (Ciss) (Max) @ Vds	9 pF @ 3 V
FET Feature	-
Power Dissipation (Max)	250mW (Ta)
Operating Temperature	-65°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	SOT-523
Package / Case	SC-89, SOT-490
