Name: CMLDM8120G TR PBFREE
Brand: Central Semiconductor Corp
SKU: CMLDM8120G TR PBFREE
Price: 0.51 USD
Availability: InStock

REF: CMLDM8120G TR PBFREE Central Semiconductor Corp

CMLDM8120G TR PBFREE

Central Semiconductor Corp

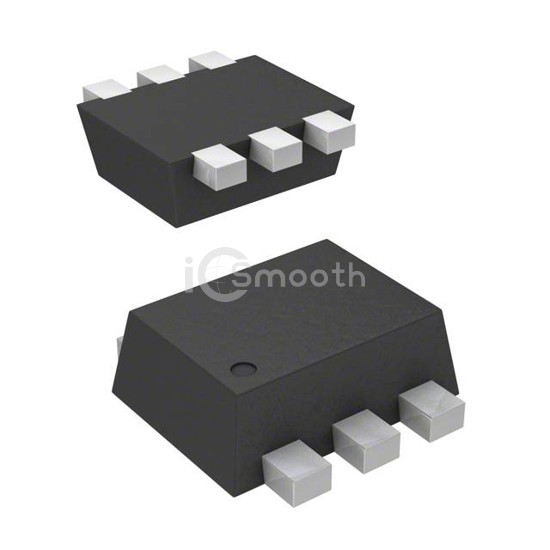

MOSFET P-CH 20V 860MA SOT563

CMLDM8120G TR PBFREE is a Transistors - FETs, MOSFETs - Single manufactured by Central Semiconductor Corp. MOSFET P-CH 20V 860MA SOT563. Key specifications: mounting type Surface Mount, operating temperature -65°C ~ 150°C (TJ), package / case SOT-563, SOT-666.

Datasheet Request a Quote

In Stock: 1,449

Specifications

17 parameters

Product Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	20 V
Current - Continuous Drain (Id) @ 25°C	860mA (Ta)
Drive Voltage (Max Rds On, Min Rds On)	1.8V, 4.5V
Rds On (Max) @ Id, Vgs	150mOhm @ 950mA, 4.5V
Vgs(th) (Max) @ Id	1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	3.56 nC @ 4.5 V

Vgs (Max)	8V
Input Capacitance (Ciss) (Max) @ Vds	200 pF @ 16 V
FET Feature	-
Power Dissipation (Max)	350mW (Ta)
Operating Temperature	-65°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	SOT-563
Package / Case	SOT-563, SOT-666
