Name: CEDM8004VL TR PBFREE
Brand: Central Semiconductor Corp
SKU: CEDM8004VL TR PBFREE
Price: 0.39 USD
Availability: InStock

REF: CEDM8004VL TR PBFREE Central Semiconductor Corp

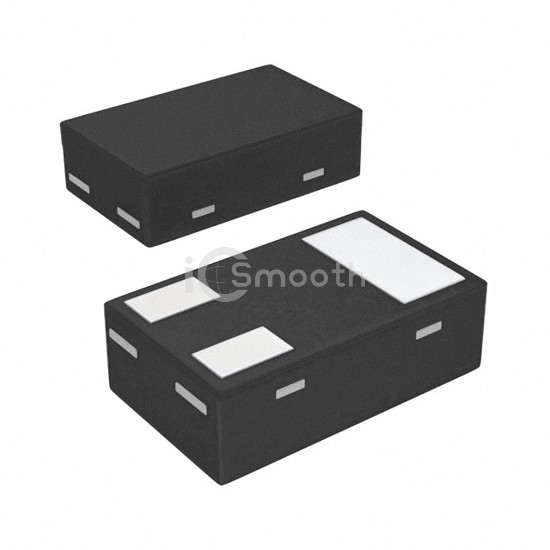

CEDM8004VL TR PBFREE

Central Semiconductor Corp

MOSFET P-CH 30V 450MA SOT883VL

CEDM8004VL TR PBFREE is a Transistors - FETs, MOSFETs - Single manufactured by Central Semiconductor Corp. MOSFET P-CH 30V 450MA SOT883VL. Key specifications: mounting type Surface Mount, operating temperature -65°C ~ 150°C (TJ), package / case SC-101, SOT-883.

Datasheet Request a Quote

In Stock: 12,236

Specifications

17 parameters

Product Status	Obsolete
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30 V
Current - Continuous Drain (Id) @ 25°C	450mA (Ta)
Drive Voltage (Max Rds On, Min Rds On)	1.8V, 4.5V
Rds On (Max) @ Id, Vgs	1.1Ohm @ 430mA, 4.5V
Vgs(th) (Max) @ Id	1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	0.88 nC @ 4.5 V

Vgs (Max)	8V
Input Capacitance (Ciss) (Max) @ Vds	55 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	100mW (Ta)
Operating Temperature	-65°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	SOT-883VL
Package / Case	SC-101, SOT-883
