CEDM8001 TR PBFREE

In Stock: 8,000

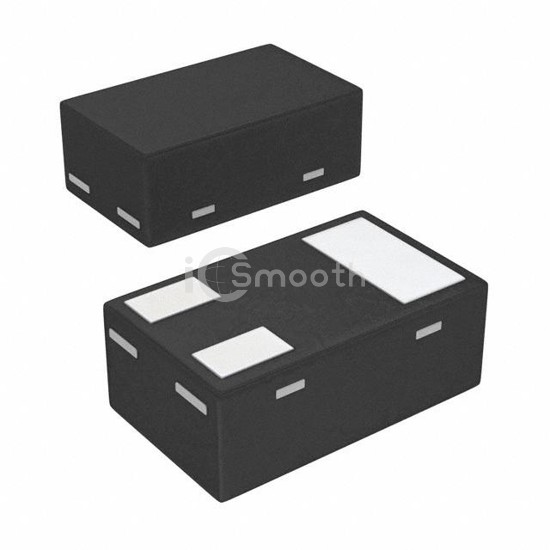

CEDM8001 TR PBFREE - Central Semiconductor Corp - Transistors - FETs, MOSFETs - Single
REF: CEDM8001 TR PBFREE Central Semiconductor Corp
CEDM8001 TR PBFREE

Central Semiconductor Corp

MOSFET P-CH 20V 100MA SOT883

CEDM8001 TR PBFREE is a Transistors - FETs, MOSFETs - Single manufactured by Central Semiconductor Corp. MOSFET P-CH 20V 100MA SOT883. Key specifications: mounting type Surface Mount, operating temperature -65°C ~ 150°C (TJ), package / case SC-101, SOT-883.

Datasheet Request a Quote

In Stock: 8,000

Specifications

17 parameters
Product StatusActive
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)20 V
Current - Continuous Drain (Id) @ 25°C100mA (Ta)
Drive Voltage (Max Rds On, Min Rds On)1.5V, 4V
Rds On (Max) @ Id, Vgs8Ohm @ 10mA, 4V
Vgs(th) (Max) @ Id1.1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs0.66 nC @ 4.5 V
Vgs (Max)10V
Input Capacitance (Ciss) (Max) @ Vds45 pF @ 3 V
FET Feature-
Power Dissipation (Max)100mW (Ta)
Operating Temperature-65°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageSOT-883
Package / CaseSC-101, SOT-883
