Name: CEDM7004VL TR PBFREE
Brand: Central Semiconductor Corp
SKU: CEDM7004VL TR PBFREE
Availability: InStock

REF: CEDM7004VL TR PBFREE Central Semiconductor Corp

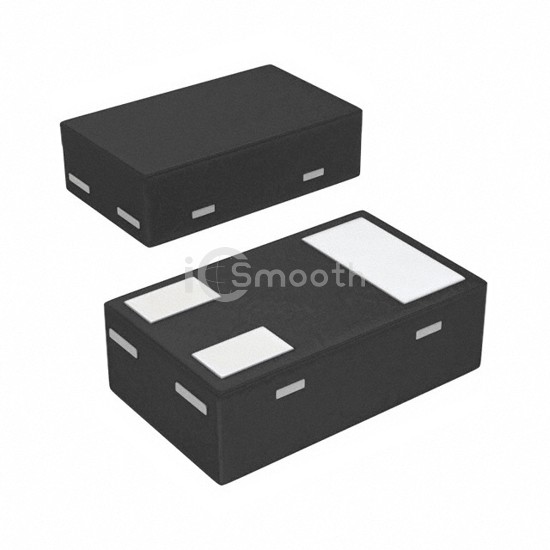

CEDM7004VL TR PBFREE

Central Semiconductor Corp

MOSFET N-CH 30V 450MA SOT883VL

CEDM7004VL TR PBFREE is a Transistors - FETs, MOSFETs - Single manufactured by Central Semiconductor Corp. MOSFET N-CH 30V 450MA SOT883VL. Key specifications: mounting type Surface Mount, operating temperature -65°C ~ 150°C (TJ), package / case SC-101, SOT-883.

Datasheet Request a Quote

In Stock: 7,805

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30 V
Current - Continuous Drain (Id) @ 25°C	450mA (Ta)
Drive Voltage (Max Rds On, Min Rds On)	1.8V, 4.5V
Rds On (Max) @ Id, Vgs	460mOhm @ 200mA, 4.5V
Vgs(th) (Max) @ Id	1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	0.79 nC @ 4.5 V

Vgs (Max)	8V
Input Capacitance (Ciss) (Max) @ Vds	43 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	100mW (Ta)
Operating Temperature	-65°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	SOT-883VL
Package / Case	SC-101, SOT-883
